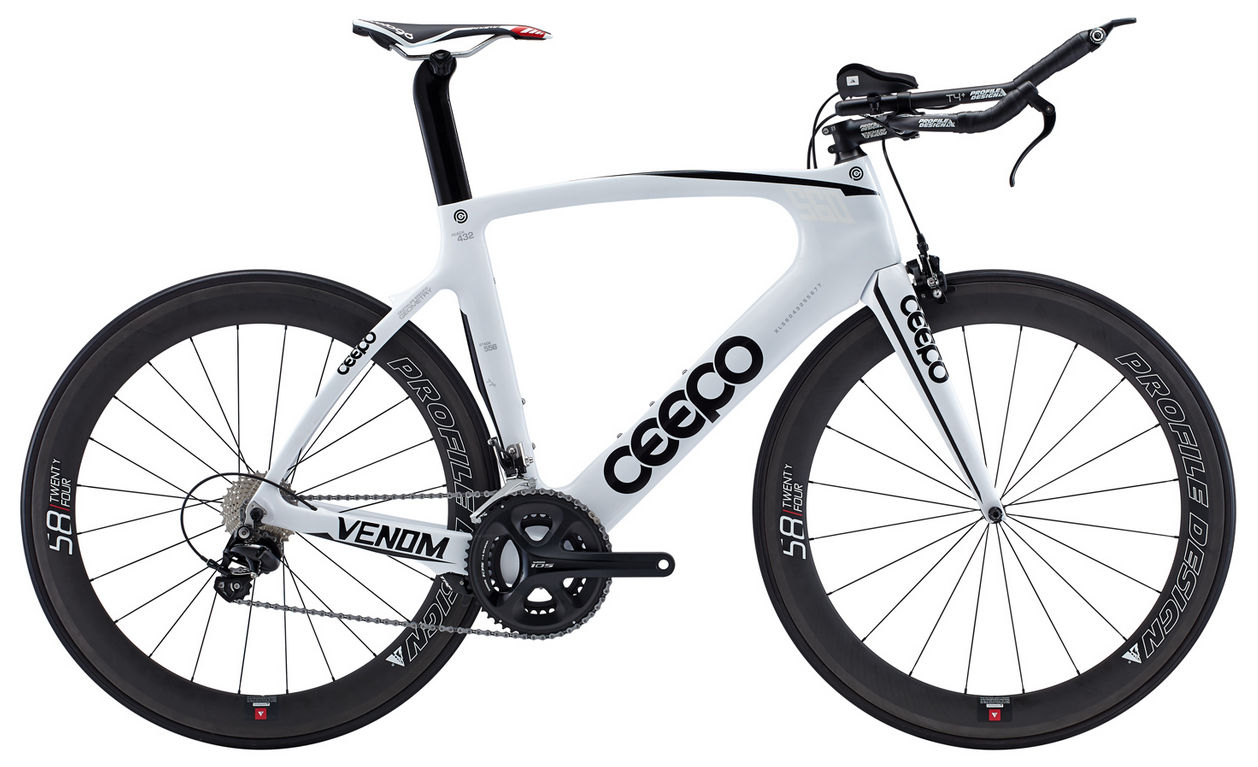

2015 Ceepo Venom 2015 geometry
Full frame geometry for the 2015 Ceepo Venom 2015, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 486 | 401 | 78.5 | 71.5 | 85 | 500 | 698 | 70 | 390 | 979 | 43 | 66 |
| M | 504 | 413 | 78 | 72.5 | 100 | 520 | 736 | 70 | 390 | 979 | 43 | 60 |
| L | 527 | 423 | 77.5 | 72.5 | 125 | 540 | 765 | 70 | 390 | 996 | 43 | 60 |
| XL | 556 | 432 | 77 | 72.5 | 155 | 560 | 786 | 70 | 390 | 1014 | 43 | 60 |
All measurements in millimetres unless marked (°) for angles.
