2022 Ceepo · RD

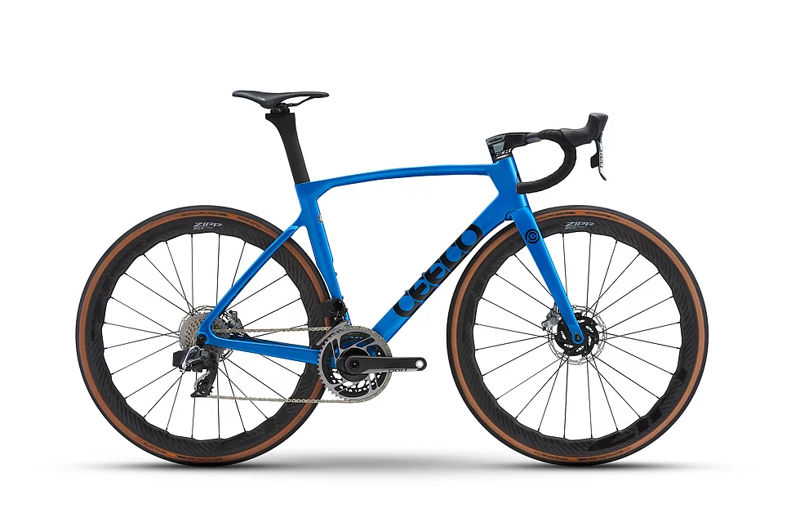

2022 Ceepo Stinger geometry
Full frame geometry for the 2022 Ceepo Stinger, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 494 | 377 | 76 | 71.5 | 95 | 500 | 430 | 708 | 70 | 400 | 43 |
| S | 508 | 384 | 75 | 71.5 | 110 | 520 | 460 | 738 | 70 | 400 | 43 |
| M | 533 | 387 | 74.5 | 72 | 135 | 535 | 490 | 767 | 70 | 400 | 43 |
| L | 557 | 390 | 73.5 | 72 | 160 | 555 | 520 | 795 | 70 | 400 | 43 |
All measurements in millimetres unless marked (°) for angles.
