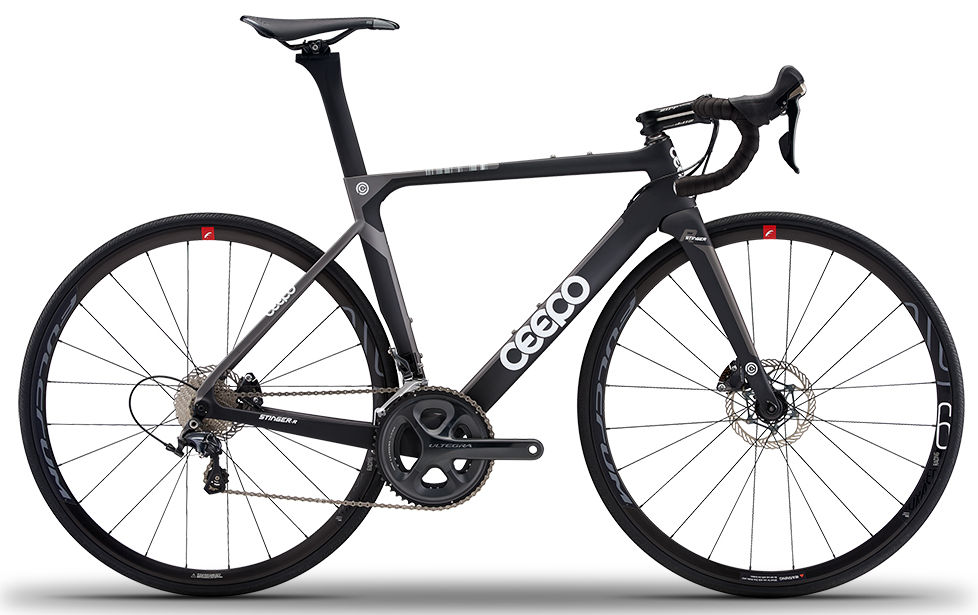

2015 Ceepo Stinger-R geometry
Full frame geometry for the 2015 Ceepo Stinger-R, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 488 | 378 | 76 | 71.5 | 85 | 500 | 708 | 70 | 400 | 959 | 45 | 64 |
| S | 502 | 385 | 75 | 71.5 | 100 | 520 | 738 | 70 | 400 | 971 | 45 | 64 |
| M | 528 | 388 | 74.5 | 72 | 125 | 535 | 767 | 70 | 400 | 976 | 43 | 63 |
| L | 552 | 391 | 73.5 | 72 | 150 | 555 | 795 | 70 | 400 | 987 | 43 | 63 |
| XL | 583 | 392 | 73 | 72.5 | 180 | 570 | 826 | 70 | 400 | 990 | 41 | 62 |
All measurements in millimetres unless marked (°) for angles.
