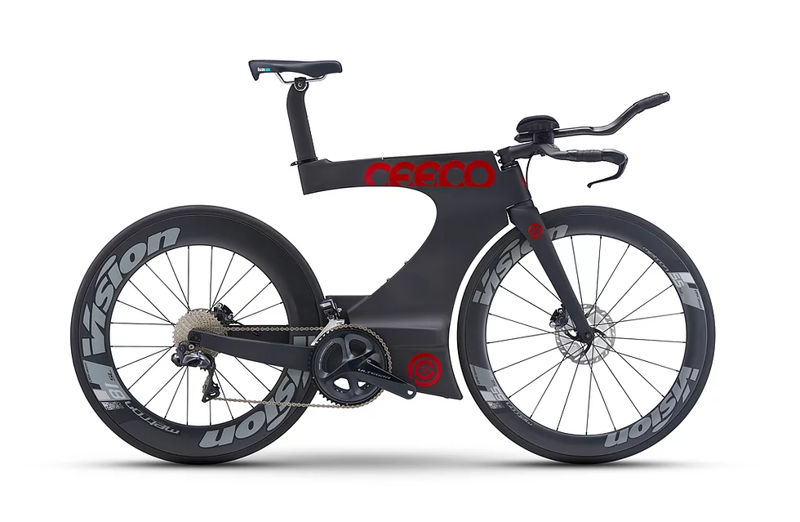

2022 Ceepo Shadow geometry
Full frame geometry for the 2022 Ceepo Shadow, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 485 | 405 | 79 | 71 | 80 | 500 | 450 | 718.8 | 596 | 400 | 985 |
| M | 510 | 420 | 78.5 | 71 | 107 | 520 | 490 | 804.5 | 620 | 400 | 1008 |
| L | 540 | 435 | 78.5 | 71.5 | 137 | 540 | 520 | 832.3 | 640 | 400 | 1029 |
All measurements in millimetres unless marked (°) for angles.
