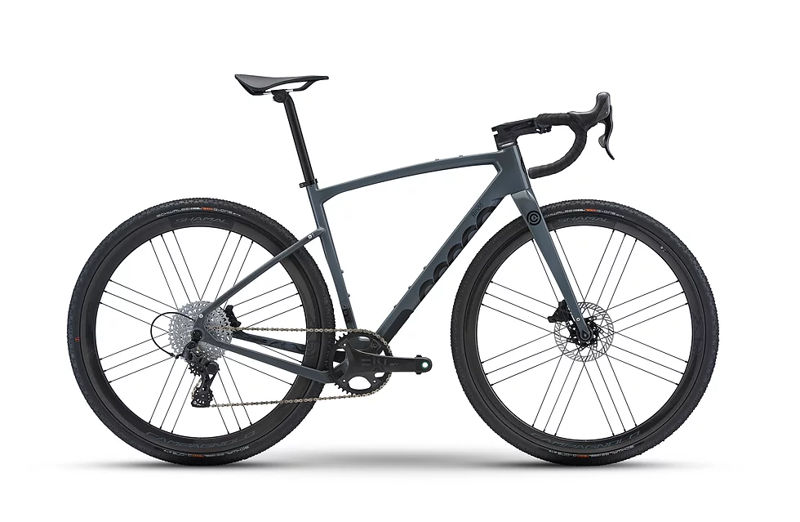

2022 Ceepo Rindo geometry
Full frame geometry for the 2022 Ceepo Rindo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 527 | 370 | 76 | 72 | 85 | 501 | 430 | 708 | 75 | 400 | 987 |
| S | 535 | 375 | 75 | 72.5 | 92 | 518 | 460 | 738 | 75 | 400 | 991 |
| M | 560 | 385 | 74.5 | 72.5 | 118 | 540 | 490 | 767 | 75 | 400 | 1007 |
| L | 590 | 395 | 73.5 | 72.5 | 150 | 570 | 520 | 795 | 75 | 400 | 1028 |
All measurements in millimetres unless marked (°) for angles.
