2015 Ceepo · MH

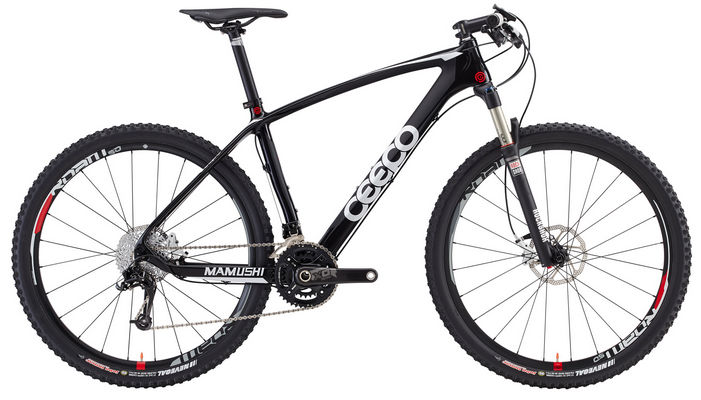

2015 Ceepo Mamushi geometry
Full frame geometry for the 2015 Ceepo Mamushi, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 582 | 387 | 73.5 | 70.5 | 95 | 560 | 784 | 46 | 430 |
| M | 589 | 410 | 73.5 | 70.5 | 102 | 585 | 806 | 46 | 430 |
| L | 600 | 421 | 73 | 71 | 112 | 605 | 835 | 46 | 430 |
All measurements in millimetres unless marked (°) for angles.
