2021 Ceepo · RD

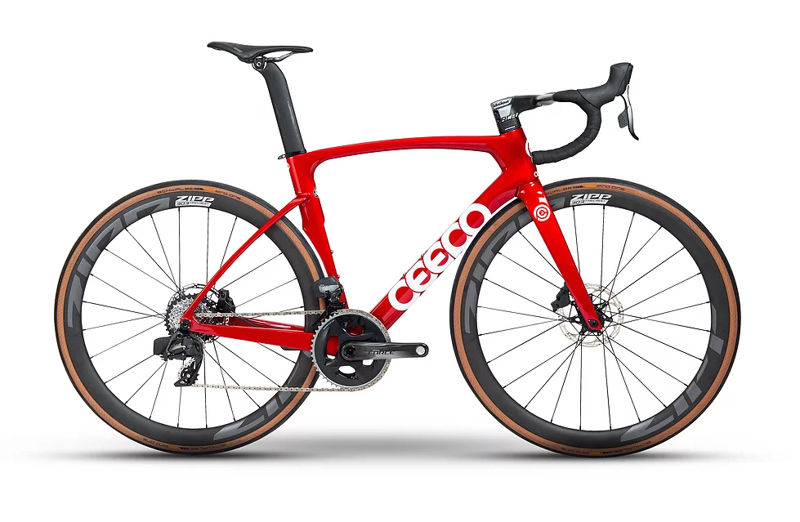

2021 Ceepo Mamba-R geometry
Full frame geometry for the 2021 Ceepo Mamba-R, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XS/43 | 488 | 378 | 76 | 71.5 | 90 | 500 | 430 | 708 | 400 |
| S/46 | 502 | 385 | 75 | 71.5 | 105 | 520 | 460 | 738 | 400 |
| M/49 | 528 | 388 | 74.5 | 72 | 130 | 535 | 490 | 767 | 400 |
| L/52 | 552 | 391 | 73.5 | 72 | 155 | 555 | 520 | 795 | 400 |
| XL/55 | 583 | 402 | 73 | 72.5 | 185 | 580 | 550 | 826 | 400 |
All measurements in millimetres unless marked (°) for angles.
