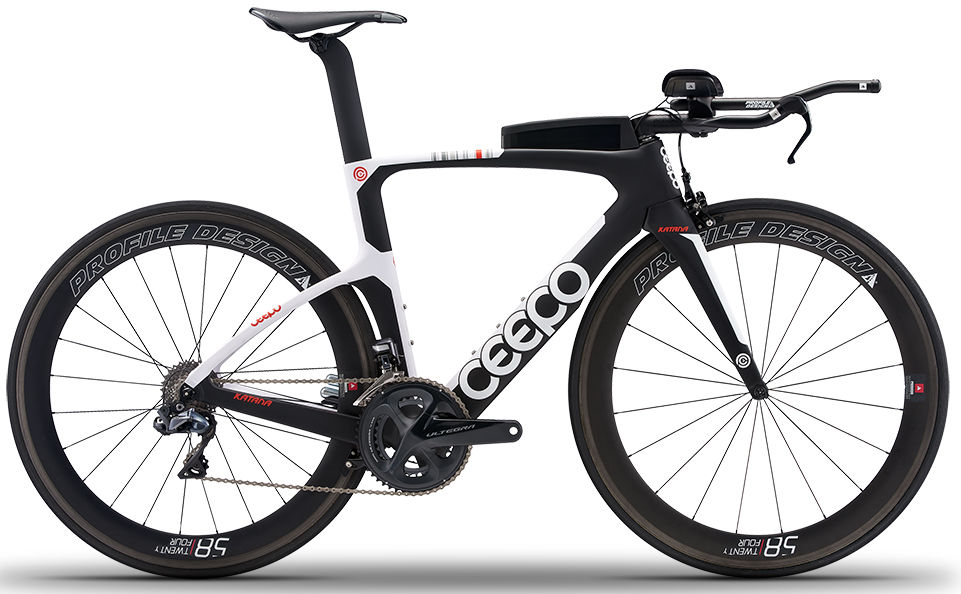

2016 Ceepo Katana 2016 geometry
Full frame geometry for the 2016 Ceepo Katana 2016, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 486 | 395 | 79 | 71.5 | 80 | 490 | 420 | 694 | 75 | 583 | 400 | 971 |
| M | 510 | 411 | 78.5 | 71.5 | 105 | 515 | 490 | 756 | 75 | 607 | 400 | 995 |
| L | 540 | 425 | 78.5 | 72 | 135 | 535 | 530 | 795 | 75 | 626 | 400 | 1014 |
| XL | 570 | 440 | 78 | 72 | 167 | 561 | 565 | 827 | 75 | 650 | 400 | 1039 |
All measurements in millimetres unless marked (°) for angles.
