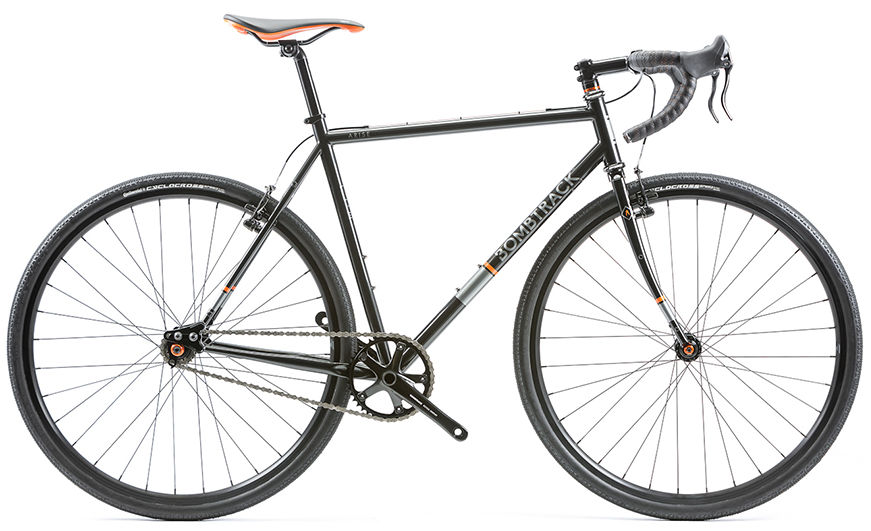

2016 Bombtrack Arise geometry
Full frame geometry for the 2016 Bombtrack Arise, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 538 | 383 | 74 | 73 | 120 | 524 | 510 | 781 | 55 | 420 | 989 | 40 |
| M | 560 | 396 | 73.5 | 73.2 | 143 | 550 | 540 | 806 | 55 | 420 | 1007 | 40 |
| L | 597 | 411 | 73.5 | 73.5 | 180 | 576 | 580 | 843 | 55 | 420 | 1030 | 40 |
All measurements in millimetres unless marked (°) for angles.
