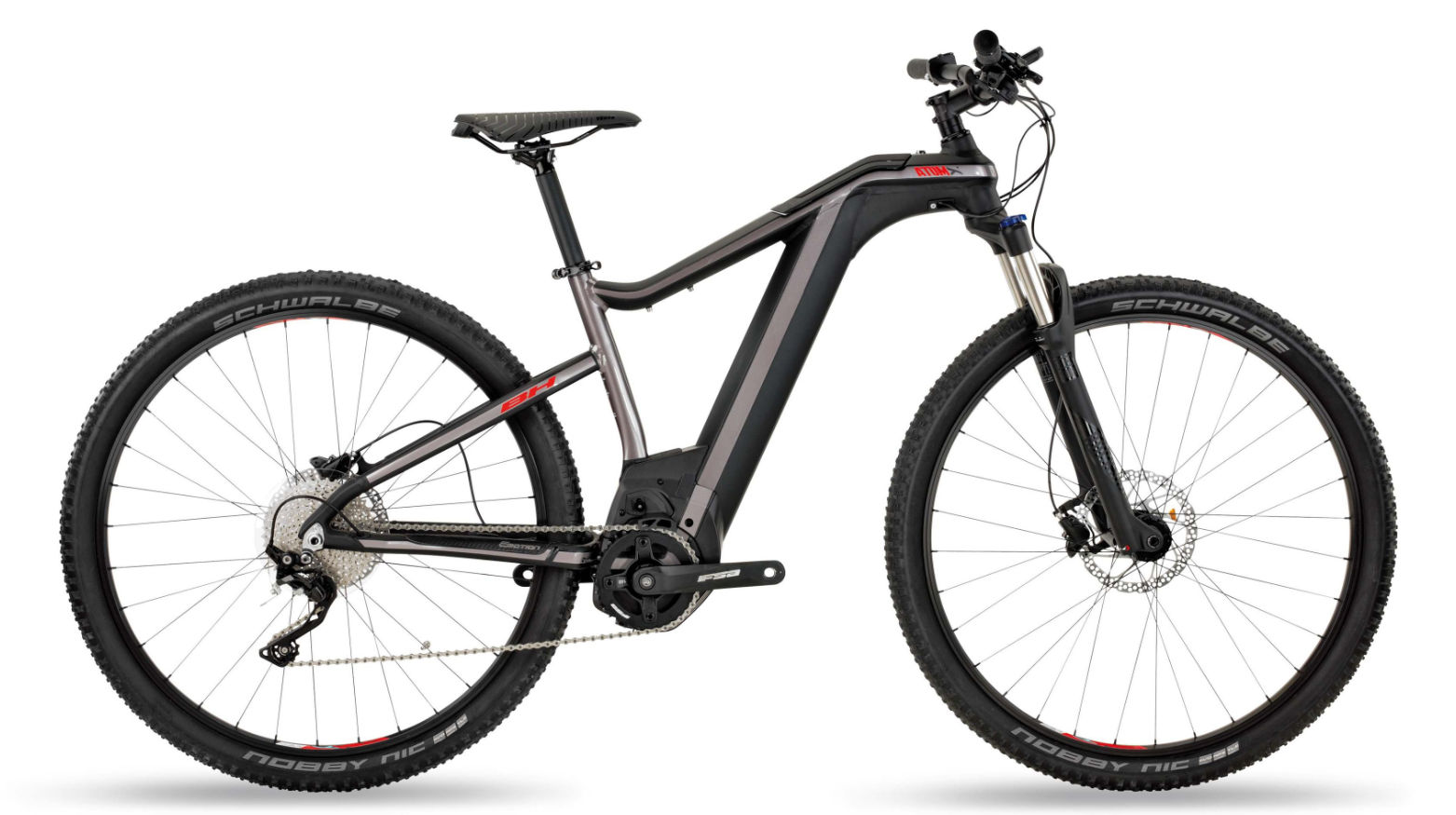

2018 BH Atom X geometry
Full frame geometry for the 2018 BH Atom X, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 609 | 415 | 74 | 69 | 100 | 582 | 420 | 460 | 1136 |
| L | 618 | 450 | 74 | 69 | 110 | 621 | 480 | 460 | 1175 |
| M | 618 | 430 | 74 | 69 | 110 | 600 | 450 | 460 | 1154 |
All measurements in millimetres unless marked (°) for angles.
