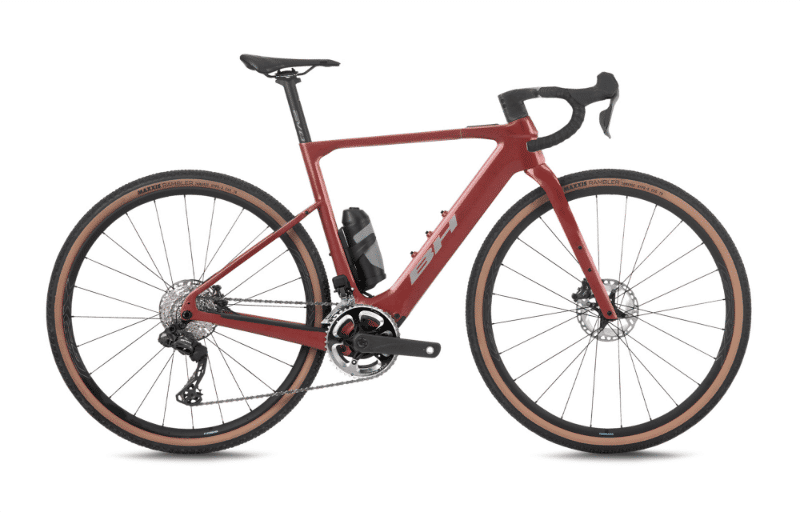

2027 BH iGravelX Carbon geometry
Full frame geometry for the 2027 BH iGravelX Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SM | 538 | 385 | 75 | 71 | 105 | 532 | 498 | 797 | 75 | 612 | 441 | 1042 |
| MD | 556 | 391 | 74 | 71 | 125 | 551 | 517 | 817 | 72 | 620 | 441 | 1051 |
| LA | 578 | 402 | 74 | 72 | 145 | 571 | 536 | 836 | 73 | 634 | 441 | 1064 |
| XL | 597 | 413 | 74 | 72 | 165 | 587 | 559 | 857 | 73 | 650 | 441 | 1081 |
All measurements in millimetres unless marked (°) for angles.
