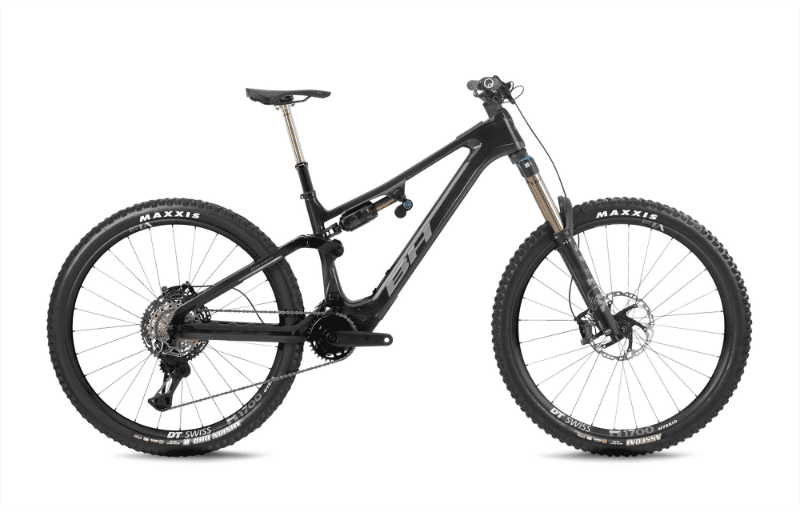

2027 BH iLynx+ DL Enduro Carbon geometry
Full frame geometry for the 2027 BH iLynx+ DL Enduro Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SM | 629 | 445 | 78 | 63.5 | 110 | 584 | 396 | 24 | 796 | 450 | 1245 |
| MD | 638 | 472 | 78 | 63.5 | 120 | 613 | 416 | 24 | 827 | 450 | 1276 |
| LA | 647 | 495 | 78 | 63.5 | 130 | 638 | 436 | 24 | 855 | 450 | 1304 |
| XL | 655 | 515 | 78 | 63.5 | 140 | 660 | 476 | 24 | 879 | 450 | 1328 |
All measurements in millimetres unless marked (°) for angles.
