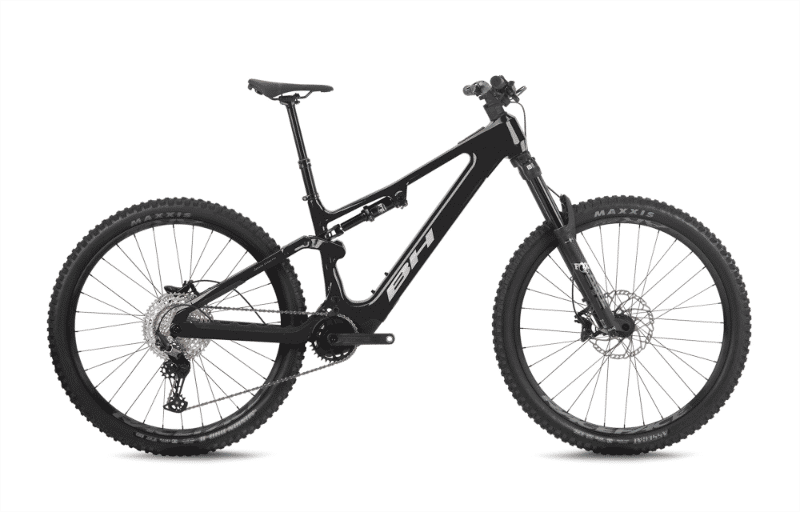

2027 BH iLynx+ DL Enduro geometry
Full frame geometry for the 2027 BH iLynx+ DL Enduro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SM | 625 | 455 | 78 | 64 | 110 | 576 | 396 | 28 | 796 | 450 | 1245 |
| MD | 634 | 477 | 78 | 64 | 120 | 600 | 416 | 28 | 823 | 450 | 1271 |
| LA | 642 | 500 | 78 | 64 | 130 | 625 | 436 | 27 | 850 | 450 | 1299 |
| XL | 651 | 520 | 78 | 64 | 140 | 647 | 476 | 27 | 875 | 450 | 1323 |
All measurements in millimetres unless marked (°) for angles.
