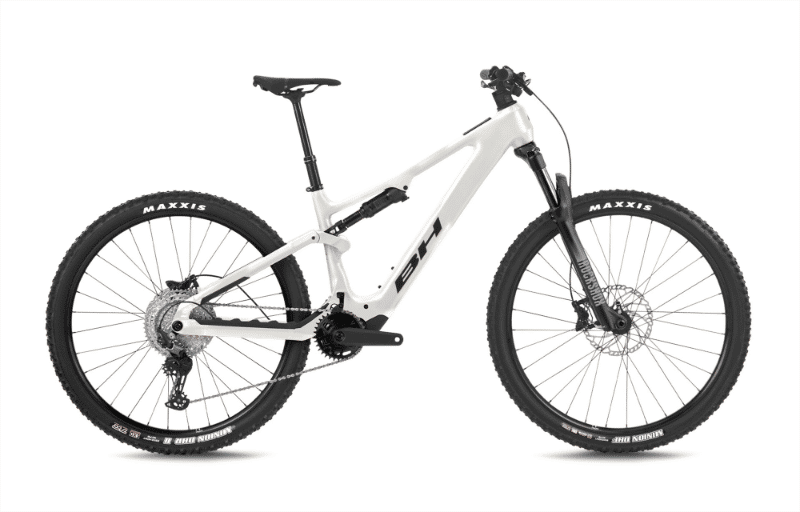

2027 BH iLynx+ DL Trail geometry
Full frame geometry for the 2027 BH iLynx+ DL Trail, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SM | 629 | 450 | 77 | 65 | 110 | 590 | 400 | 810 | 30 | 779 | 447 | 1224 |
| MD | 634 | 470 | 77 | 65 | 115 | 616 | 420 | 808 | 30 | 801 | 447 | 1246 |
| LA | 648 | 495 | 77 | 65 | 130 | 645 | 440 | 808 | 30 | 832 | 447 | 1278 |
| XL | 657 | 520 | 77 | 65 | 140 | 672 | 480 | 808 | 30 | 861 | 447 | 1307 |
All measurements in millimetres unless marked (°) for angles.
