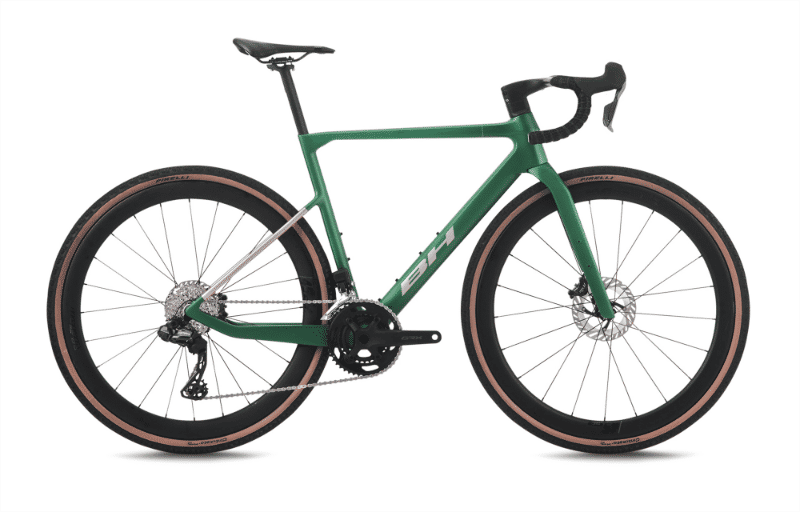

2027 BH GravelX R geometry
Full frame geometry for the 2027 BH GravelX R, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 510 | 366 | 75 | 69.5 | 100 | 503 | 478 | 67 | 584 | 426 | 1000 |
| SM | 540 | 370 | 73.8 | 70.5 | 120 | 527 | 500 | 75 | 591 | 426 | 1009 |
| MD | 556 | 377 | 73 | 71 | 140 | 548 | 520 | 73 | 602 | 426 | 1019 |
| LA | 577 | 387 | 72.8 | 71.5 | 160 | 567 | 540 | 73 | 614 | 426 | 1031 |
| XL | 598 | 398 | 72.5 | 72 | 180 | 587 | 560 | 71 | 626 | 426 | 1044 |
All measurements in millimetres unless marked (°) for angles.
