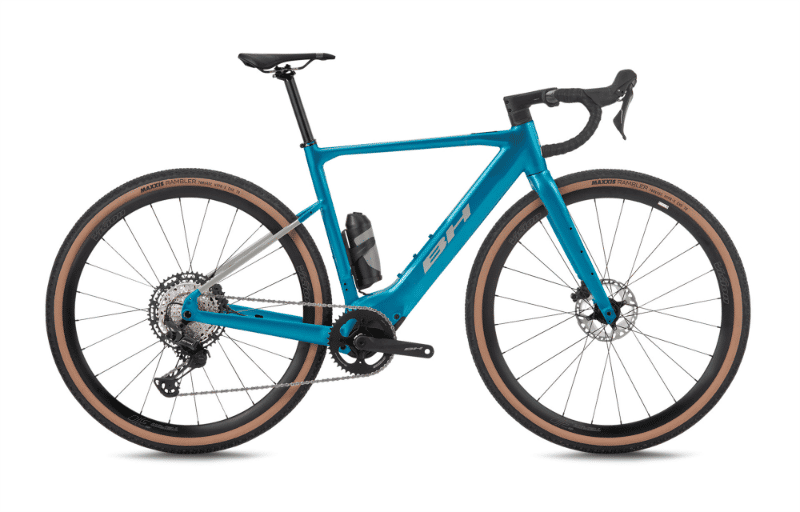

2027 BH iGravelX geometry
Full frame geometry for the 2027 BH iGravelX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SM | 544 | 385 | 75 | 71 | 120 | 533 | 500 | 778 | 72 | 615 | 441 | 1046 |
| MD | 556 | 391 | 74 | 71 | 130 | 551 | 522 | 790 | 72 | 620 | 441 | 1051 |
| LA | 577 | 402 | 74 | 72 | 150 | 571 | 540 | 860 | 72 | 633 | 441 | 1064 |
| XL | 596 | 413 | 74 | 72 | 170 | 587 | 560 | 825 | 72 | 650 | 441 | 1081 |
All measurements in millimetres unless marked (°) for angles.
