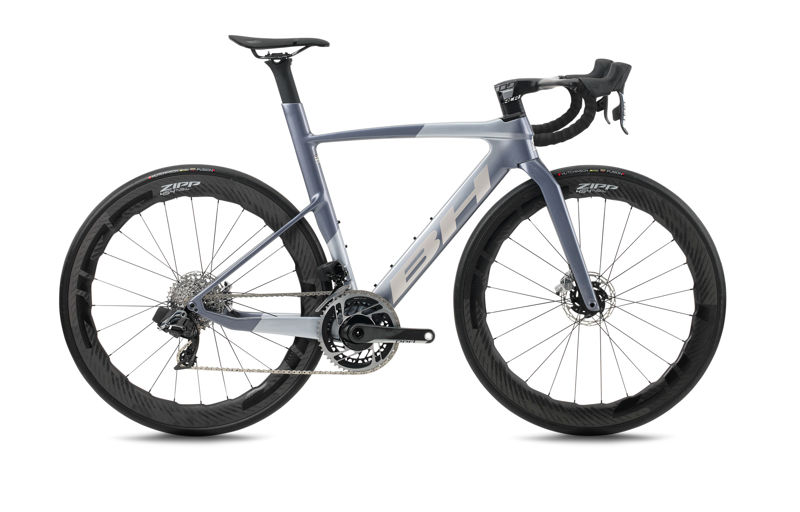

2023 BH Aerolight geometry
Full frame geometry for the 2023 BH Aerolight, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| XS | 510.5 | 368.4 | 74.5 | 71.3 | 110 | 510 | 555 | 410 |
| SM | 523.4 | 374.9 | 74 | 72.3 | 120 | 525 | 570 | 410 |
| MD | 538.9 | 382.4 | 73.5 | 72.8 | 135 | 542 | 587 | 410 |
| LA | 554.1 | 389.6 | 73 | 73 | 150 | 559 | 605 | 410 |
| XL | 576 | 398.9 | 73 | 73 | 175 | 575 | 627 | 410 |
| XXL | 601.8 | 408.2 | 73 | 73.5 | 200 | 595 | 656 | 410 |
All measurements in millimetres unless marked (°) for angles.
