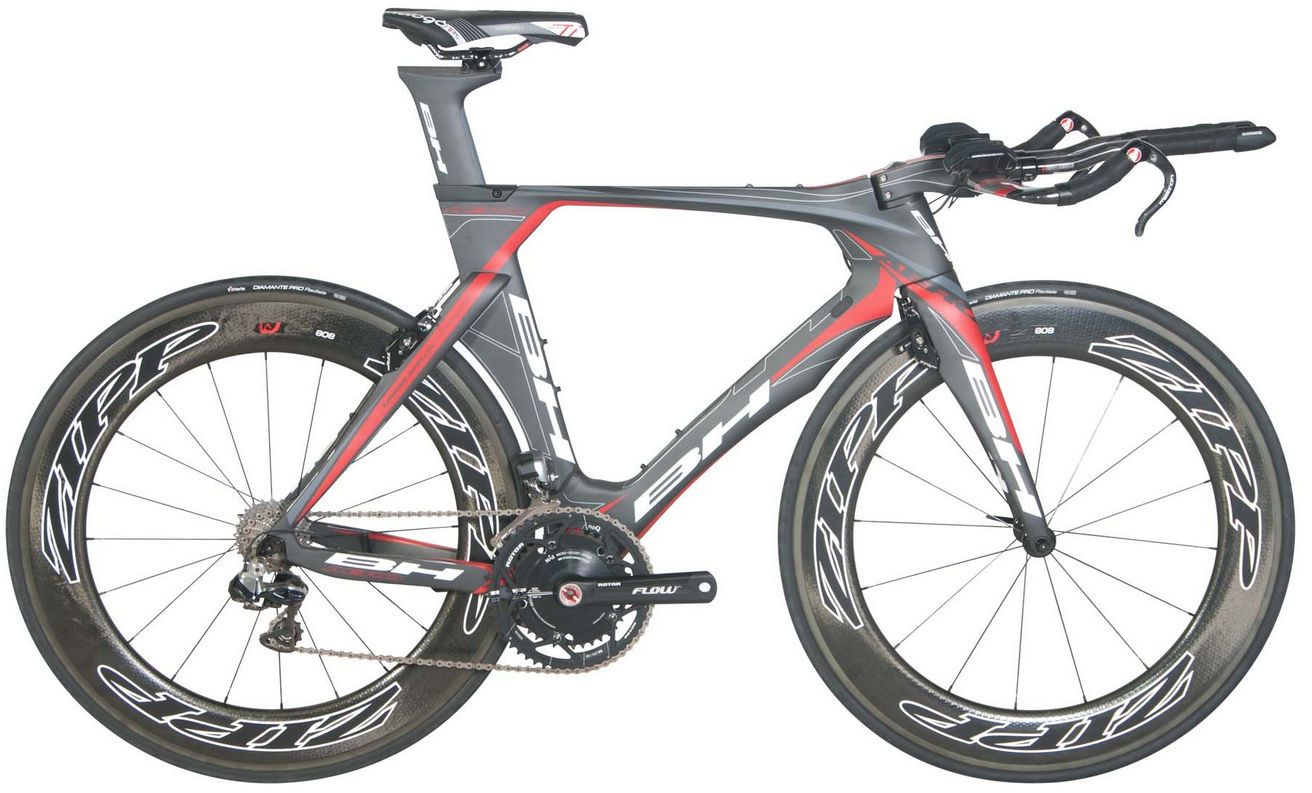

2013 BH Aerolight geometry
Full frame geometry for the 2013 BH Aerolight, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| S | 494 | 409 | 76 | 72.5 | 85 | 531 | 510 | 380 |
| M | 509 | 420 | 76 | 72.8 | 100 | 547 | 525 | 380 |
| L | 528 | 431 | 76 | 72.8 | 120 | 562 | 540 | 380 |
| XL | 547 | 443 | 76 | 72.8 | 140 | 579 | 560 | 380 |
All measurements in millimetres unless marked (°) for angles.
