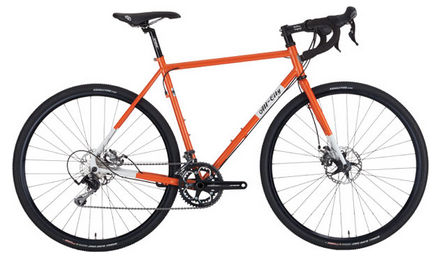

2015 All-City Macho Man geometry
Full frame geometry for the 2015 All-City Macho Man, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 526 | 369 | 74 | 70.5 | 95 | 520 | 756 | 70 | 578 | 430 | 1001 | 45 | 76 |
| 49 | 542 | 374 | 73.5 | 71 | 110 | 535 | 778 | 70 | 584 | 435 | 1013 | 45 | 73 |
| 52 | 563 | 378 | 73 | 71.5 | 130 | 550 | 802 | 70 | 589 | 435 | 1019 | 45 | 70 |
| 55 | 584 | 387 | 73 | 72 | 150 | 565 | 827 | 70 | 600 | 435 | 1030 | 45 | 66 |
| 58 | 610 | 393 | 72.5 | 72.5 | 175 | 585 | 853 | 70 | 609 | 435 | 1039 | 45 | 63 |
| 61 | 633 | 405 | 72.5 | 72.5 | 200 | 605 | 880 | 70 | 629 | 435 | 1059 | 45 | 63 |
All measurements in millimetres unless marked (°) for angles.
