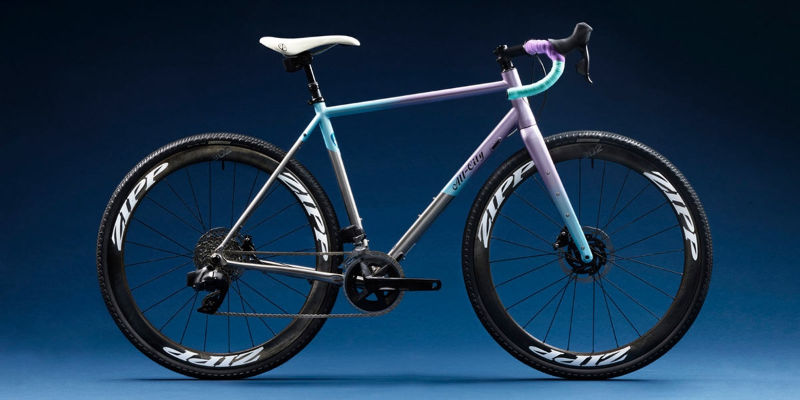

2025 All-City Cosmic Stallion Titanium geometry
Full frame geometry for the 2025 All-City Cosmic Stallion Titanium, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 529.6 | 368.1 | 75 | 70 | 108 | 510 | 450 | 719 | 73 | 436.2 | 1008 | 47 |
| 49 | 547.5 | 378.2 | 74.5 | 71 | 123 | 530 | 480 | 745 | 73 | 441.1 | 1020.1 | 47 |
| 52 | 562.6 | 383.7 | 74 | 71.5 | 137 | 545 | 510 | 769 | 73 | 446 | 1031 | 47 |
| 55 | 589.2 | 385.5 | 73.5 | 72 | 163 | 560 | 540 | 797 | 73 | 446 | 1036.5 | 47 |
| 58 | 612 | 392.9 | 73 | 72 | 187 | 580 | 570 | 823 | 73 | 446 | 1051.3 | 47 |
| 61 | 635.8 | 409.5 | 72.5 | 72 | 212 | 610 | 600 | 850 | 73 | 446 | 1075.7 | 47 |
All measurements in millimetres unless marked (°) for angles.
