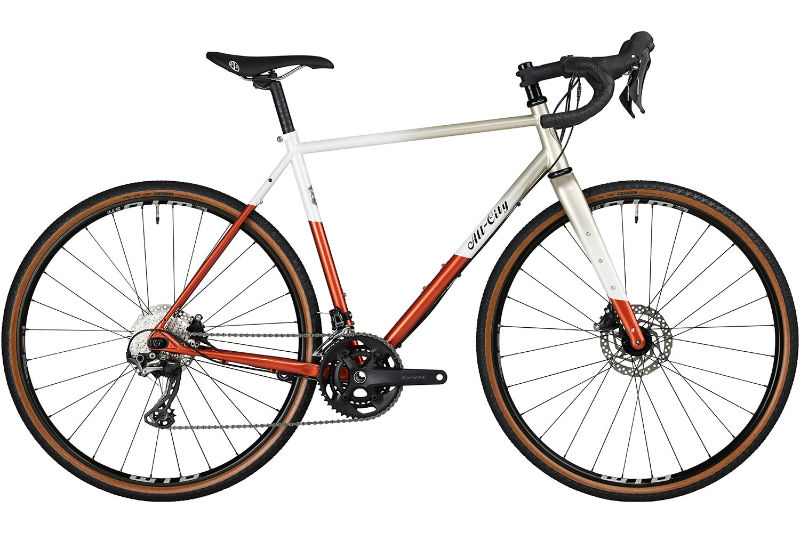

2025 All-City Cosmic Stallion geometry
Full frame geometry for the 2025 All-City Cosmic Stallion, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 529.8 | 368 | 75 | 70 | 95 | 510 | 435 | 728 | 75 | 425 | 999.8 | 45 |
| 49 | 547.7 | 378.1 | 74.5 | 71 | 110 | 530 | 465 | 753 | 75 | 425 | 1006.8 | 45 |
| 52 | 561.8 | 381.2 | 73.8 | 71.3 | 124 | 545 | 495 | 777 | 75 | 430 | 1017.4 | 45 |
| 55 | 589.1 | 385.5 | 73.5 | 72.2 | 149 | 560 | 525 | 806 | 75 | 430 | 1021.2 | 45 |
| 58 | 612 | 398.7 | 73.5 | 72.2 | 173 | 580 | 555 | 832 | 75 | 430 | 1041.8 | 45 |
| 61 | 635.8 | 409.5 | 72.5 | 72.2 | 198 | 610 | 585 | 858 | 75 | 430 | 1060.3 | 45 |
All measurements in millimetres unless marked (°) for angles.
