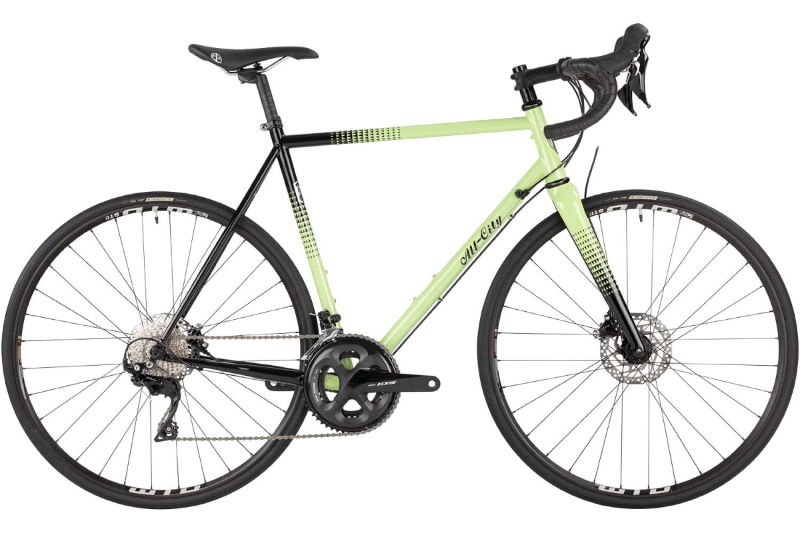

2023 All-City Zig Zag 105 geometry
Full frame geometry for the 2023 All-City Zig Zag 105, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 524 | 375 | 75.5 | 70 | 106 | 520 | 460 | 736.9 | 70 | 415 | 1003.3 | 51 |
| 49 | 540 | 377 | 74 | 71 | 121 | 530 | 490 | 761.4 | 70 | 415 | 1006.8 | 51 |
| 52 | 562 | 384 | 73.5 | 72 | 140 | 545 | 520 | 787.7 | 70 | 415 | 1011.3 | 51 |
| 55 | 583 | 389 | 73 | 72 | 160.5 | 560 | 550 | 813.4 | 70 | 415 | 1019.4 | 51 |
| 58 | 607 | 400 | 72.5 | 72.5 | 185.5 | 580 | 580 | 840.1 | 70 | 420 | 1043.5 | 51 |
| 61 | 631 | 415 | 72.5 | 72.5 | 210.5 | 605 | 610 | 866.4 | 70 | 420 | 1065.6 | 51 |
All measurements in millimetres unless marked (°) for angles.
