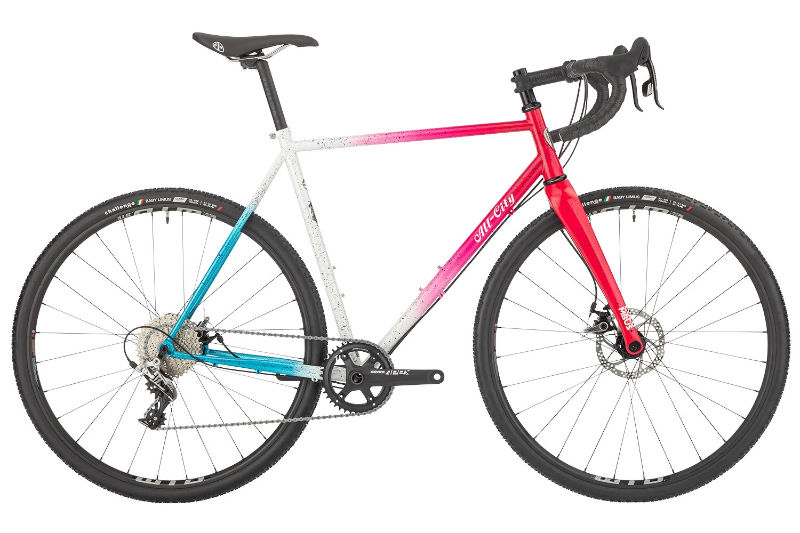

2025 All-City Nature Cross Geared geometry
Full frame geometry for the 2025 All-City Nature Cross Geared, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 536 | 376 | 75.5 | 70 | 110 | 515 | 445 | 752 | 67.5 | 425 | 1017 | 47 |
| 49 | 549 | 378 | 74 | 71 | 120 | 535 | 480 | 779 | 67.5 | 425 | 1013 | 47 |
| 52 | 566 | 382 | 73.5 | 72 | 135 | 550 | 510 | 805 | 66.5 | 425 | 1014 | 47 |
| 55 | 589 | 386 | 73 | 72 | 155 | 565 | 540 | 830 | 66.5 | 425 | 1024 | 47 |
| 58 | 610 | 393 | 72.5 | 72.5 | 180 | 585 | 570 | 858 | 65.5 | 425 | 1034 | 47 |
| 61 | 629 | 412 | 72.5 | 72.5 | 200 | 610 | 600 | 883 | 65.5 | 425 | 1059 | 47 |
All measurements in millimetres unless marked (°) for angles.
