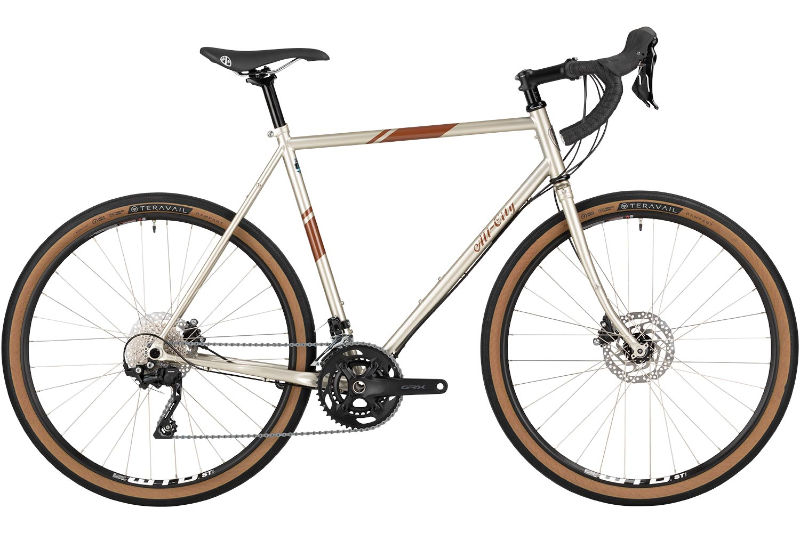

2025 All-City Space Horse geometry
Full frame geometry for the 2025 All-City Space Horse, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 43 | 493 | 363 | 75 | 70 | 95 | 495 | 420 | 725.3 | 58 | 420 | 989.4 | 49 |
| 46 | 504 | 375 | 74.5 | 70.5 | 105 | 515 | 450 | 747.2 | 58 | 420 | 1001.1 | 49 |
| 49 | 545 | 376 | 74.2 | 71 | 110 | 530 | 480 | 779 | 75 | 435 | 1021.1 | 52 |
| 52 | 559 | 380 | 73.5 | 71 | 125 | 545 | 510 | 802 | 75 | 440 | 1034.6 | 52 |
| 55 | 589 | 380 | 73 | 72 | 150 | 560 | 540 | 831 | 75 | 440 | 1029.9 | 47 |
| 58 | 612 | 387 | 72.5 | 72 | 175 | 580 | 570 | 857.3 | 75 | 445 | 1049.6 | 47 |
| 61 | 636 | 403 | 72 | 72 | 200 | 610 | 600 | 883.1 | 75 | 445 | 1073.7 | 47 |
All measurements in millimetres unless marked (°) for angles.
