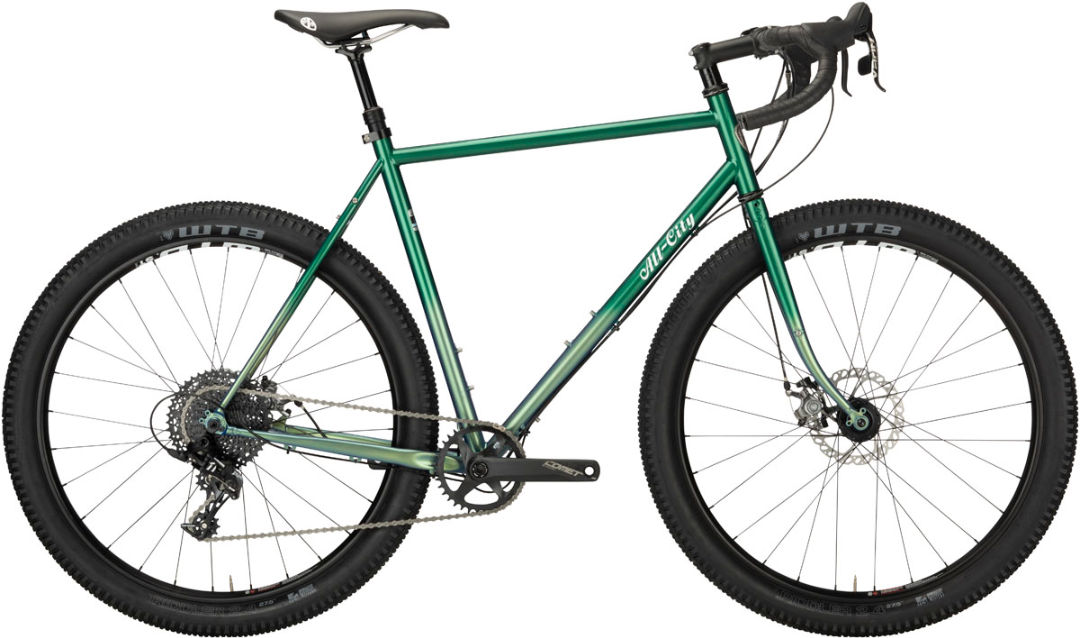

2019 All-City Gorilla Monsoon geometry
Full frame geometry for the 2019 All-City Gorilla Monsoon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 542 | 363 | 74 | 71 | 110 | 520 | 470 | 737 | 72 | 430 | 1002 | 50 |
| 49 | 556 | 369 | 73.5 | 71 | 125 | 535 | 500 | 759 | 72 | 430 | 1012 | 50 |
| 52 | 579 | 372 | 73 | 71.5 | 145 | 555 | 535 | 792 | 72 | 430 | 1015 | 47 |
| 55 | 597 | 381 | 72.5 | 71.5 | 165 | 565 | 565 | 818 | 72 | 430 | 1031 | 47 |
| 58 | 621 | 389 | 72.5 | 71.5 | 190 | 585 | 595 | 844 | 72 | 430 | 1046 | 47 |
| 61 | 645 | 401 | 72.5 | 71.5 | 215 | 605 | 625 | 871 | 72 | 430 | 1066 | 47 |
All measurements in millimetres unless marked (°) for angles.
