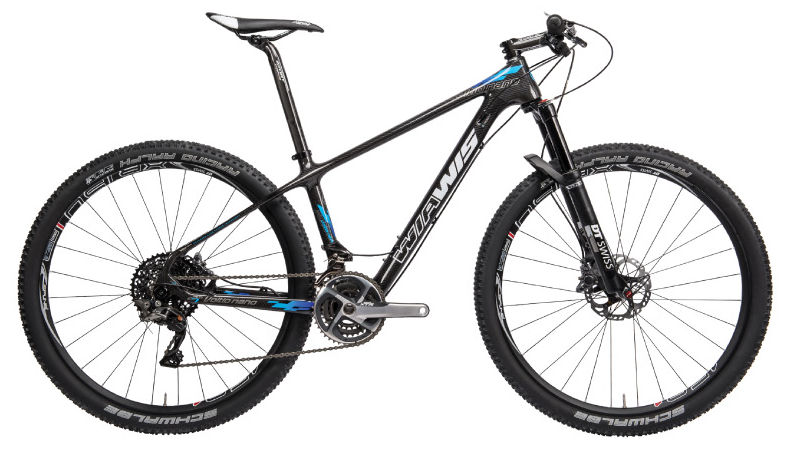

2016 Wiawis Voltio Nano MK I geometry
Full frame geometry for the 2016 Wiawis Voltio Nano MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 578 | 388 | 73 | 69 | 100 | 565 | 381 | 740 | 44 | 425 | 1063 |
| M | 583 | 402 | 73 | 69 | 105 | 580 | 432 | 766 | 44 | 425 | 1079 |
| L | 587 | 421 | 73 | 69 | 110 | 600 | 470 | 786 | 44 | 425 | 1099 |
All measurements in millimetres unless marked (°) for angles.
