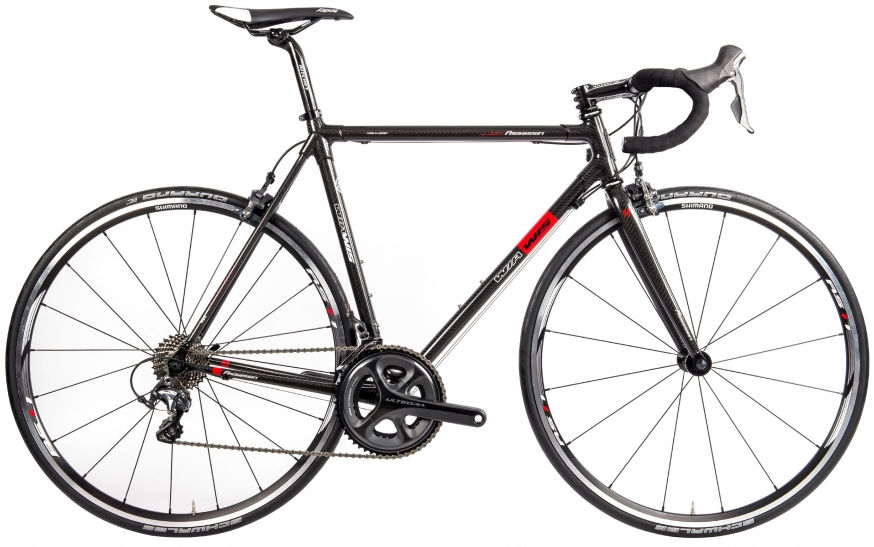

2016 Wiawis Assassin geometry
Full frame geometry for the 2016 Wiawis Assassin, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 430 | 517 | 384 | 75 | 72 | 101 | 515 | 430 | 719 | 75 | 567 | 405 | 965 | 45 | 61 |
| 470 | 523 | 391 | 75 | 72 | 107 | 522 | 470 | 740 | 75 | 578 | 405 | 973 | 45 | 61 |
| 500 | 530 | 394 | 74 | 72 | 114 | 534 | 500 | 754 | 75 | 579 | 405 | 977 | 45 | 61 |
| 530 | 540 | 401 | 74 | 72 | 125 | 544 | 530 | 775 | 75 | 589 | 405 | 987 | 45 | 61 |
| 560 | 565 | 402 | 73.5 | 73 | 148 | 560 | 560 | 801 | 75 | 591 | 405 | 989 | 45 | 55 |
All measurements in millimetres unless marked (°) for angles.
