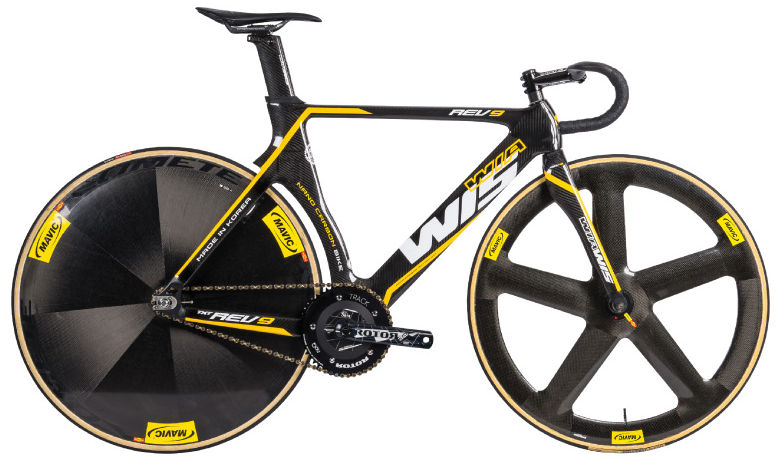

2016 Wiawis TXT Rev9 MK I geometry
Full frame geometry for the 2016 Wiawis TXT Rev9 MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 469 | 394 | 75 | 71 | 90 | 522 | 476 | 738 | 60 | 580 | 380 | 952 | 40 | 73 |
| S | 492 | 401 | 75 | 72.5 | 100 | 534 | 499 | 757 | 60 | 582 | 380 | 954 | 40 | 63 |
| M | 501 | 421 | 75 | 72.5 | 110 | 557 | 512 | 772 | 60 | 606 | 380 | 978 | 40 | 63 |
| L | 516 | 433 | 75 | 72.5 | 125 | 573 | 525 | 784 | 60 | 622 | 380 | 994 | 40 | 63 |
All measurements in millimetres unless marked (°) for angles.
