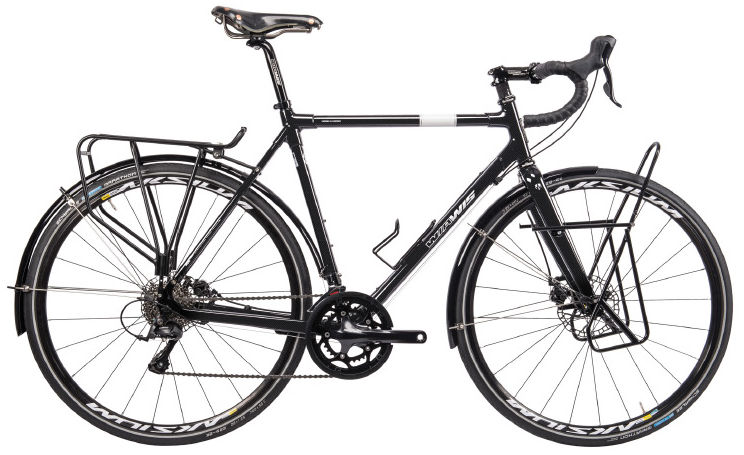

2016 Wiawis Donar geometry
Full frame geometry for the 2016 Wiawis Donar, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 500 | 529 | 389 | 73 | 71 | 125 | 538 | 500 | 756 | 70 | 591 | 445 | 1030 | 48 | 64 |
| 530 | 546 | 390 | 73 | 71 | 143 | 552 | 530 | 794 | 70 | 601 | 445 | 1040 | 48 | 64 |
| 560 | 568 | 398 | 73 | 71.5 | 165 | 567 | 560 | 820 | 70 | 612 | 445 | 1051 | 48 | 61 |
| 590 | 594 | 408 | 73 | 72 | 190 | 582 | 590 | 840 | 70 | 622 | 445 | 1061 | 48 | 58 |
All measurements in millimetres unless marked (°) for angles.
