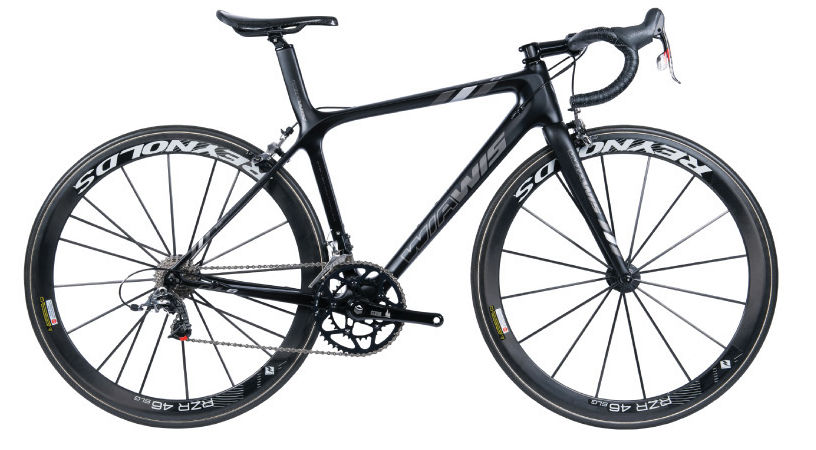

2016 Wiawis CUL6 MK I geometry
Full frame geometry for the 2016 Wiawis CUL6 MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 507 | 379 | 74.5 | 71 | 120 | 520 | 644 | 722 | 62 | 586 | 404 | 982 | 48 | 64 |
| S | 532 | 382 | 74 | 73 | 135 | 535 | 664 | 743 | 67 | 580 | 404 | 975 | 48 | 52 |
| M | 550 | 391 | 74 | 74 | 150 | 552 | 686 | 764 | 67 | 586 | 404 | 980 | 48 | 46 |
All measurements in millimetres unless marked (°) for angles.
