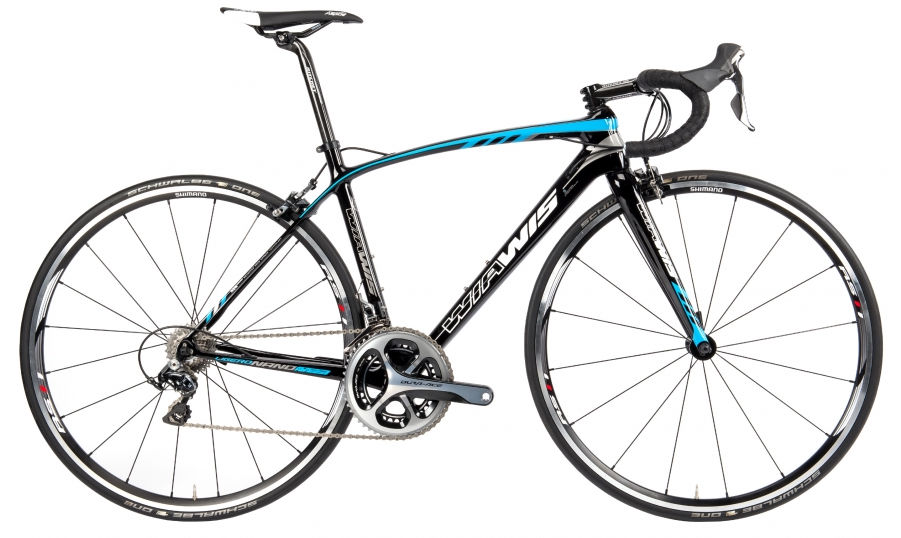

2016 Wiawis Ligero Nano geometry
Full frame geometry for the 2016 Wiawis Ligero Nano, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 503 | 366 | 75 | 71 | 110 | 500 | 440 | 723 | 67 | 565 | 404 | 963 | 48 | 64 |
| XS | 510 | 378 | 74.5 | 72 | 115 | 520 | 460 | 734 | 67 | 573 | 404 | 971 | 48 | 58 |
| S | 517 | 387 | 74 | 72.5 | 120 | 535 | 480 | 746 | 67 | 579 | 404 | 977 | 48 | 55 |
| M | 538 | 390 | 73 | 73 | 140 | 550 | 500 | 767 | 67 | 583 | 404 | 981 | 48 | 52 |
| L | 557 | 398 | 73 | 73 | 160 | 565 | 525 | 795 | 67 | 598 | 404 | 996 | 48 | 52 |
All measurements in millimetres unless marked (°) for angles.
