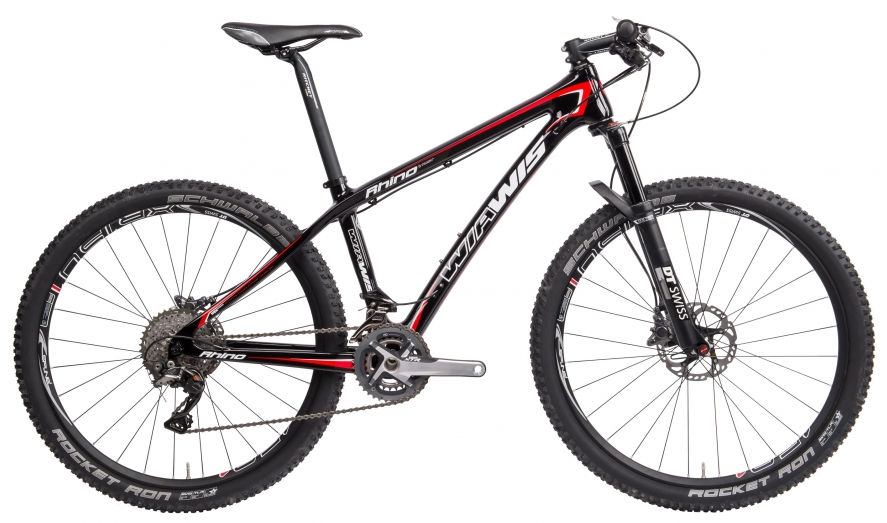

2016 Wiawis Rhino geometry
Full frame geometry for the 2016 Wiawis Rhino, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 568 | 349 | 73 | 70 | 100 | 522 | 343 | 703 | 35 | 420 | 1004 |
| S | 581 | 379 | 73 | 71 | 110 | 555 | 381 | 739 | 35 | 420 | 1026 |
| M | 595 | 384 | 73 | 71 | 125 | 568 | 432 | 769 | 35 | 420 | 1039 |
All measurements in millimetres unless marked (°) for angles.
