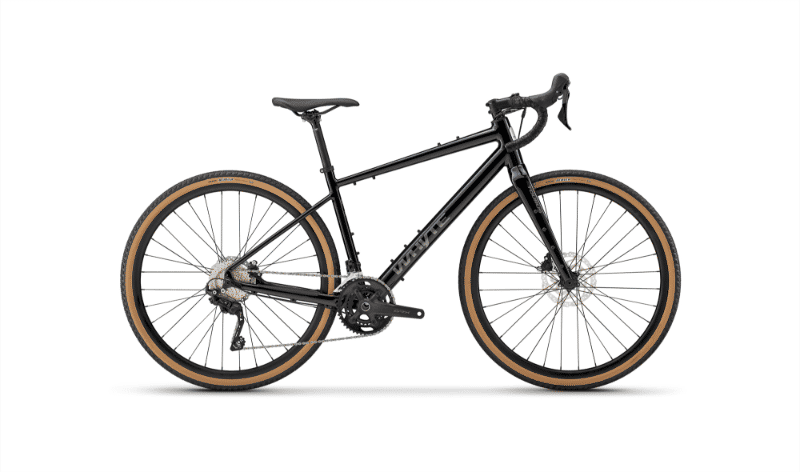

2026 Whyte Tourus geometry
Full frame geometry for the 2026 Whyte Tourus, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XS | 563 | 398.5 | 74.5 | 70 | 123 | 405 | 727 | 445 | 1052 |
| S | 577.3 | 413.5 | 74.5 | 70 | 138 | 430 | 745 | 445 | 1072 |
| M | 591.4 | 428.5 | 74.5 | 70 | 153 | 460 | 766 | 445 | 1092 |
| L | 605.4 | 436 | 74.5 | 70 | 168 | 490 | 788 | 445 | 1105 |
| XL | 619.5 | 448.5 | 74.5 | 70 | 183 | 530 | 814 | 445 | 1123 |
All measurements in millimetres unless marked (°) for angles.
