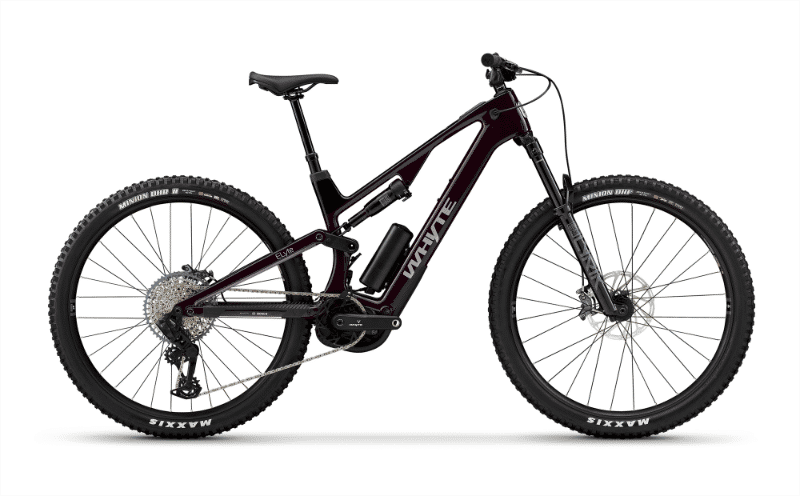

2026 Whyte ELyte EVO geometry
Full frame geometry for the 2026 Whyte ELyte EVO, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 628.7 | 431 | 77.5 | 64.6 | 114 | 395 | 741 | 450.4 | 1211.6 |
| M | 640.5 | 456 | 77.3 | 64.6 | 127 | 420 | 741 | 450.4 | 1242.1 |
| L | 652.3 | 481 | 77.1 | 64.6 | 140 | 445 | 741 | 450.4 | 1272.6 |
| XL | 663.2 | 506 | 76.9 | 64.6 | 152 | 470 | 741 | 450.4 | 1302.7 |
All measurements in millimetres unless marked (°) for angles.
