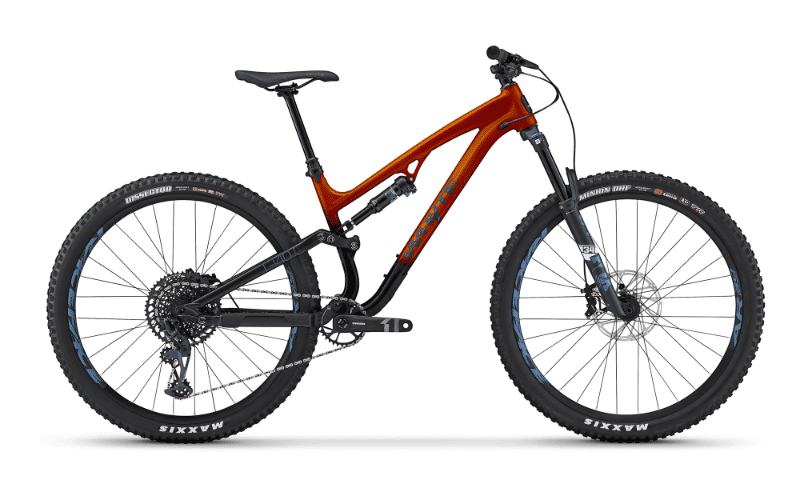

2026 Whyte T-140 geometry
Full frame geometry for the 2026 Whyte T-140, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 621.4 | 430 | 76.4 | 65.3 | 107 | 395 | 735 | 435 | 1184.7 | 44 |
| M | 633.2 | 455 | 76.2 | 65.3 | 120 | 420 | 735 | 435 | 1215.1 | 44 |
| L | 646.8 | 483 | 76 | 65.3 | 135 | 445 | 735 | 435 | 1249.5 | 44 |
| XL | 658.5 | 510 | 75.8 | 65.3 | 148 | 470 | 735 | 435 | 1282 | 44 |
All measurements in millimetres unless marked (°) for angles.
