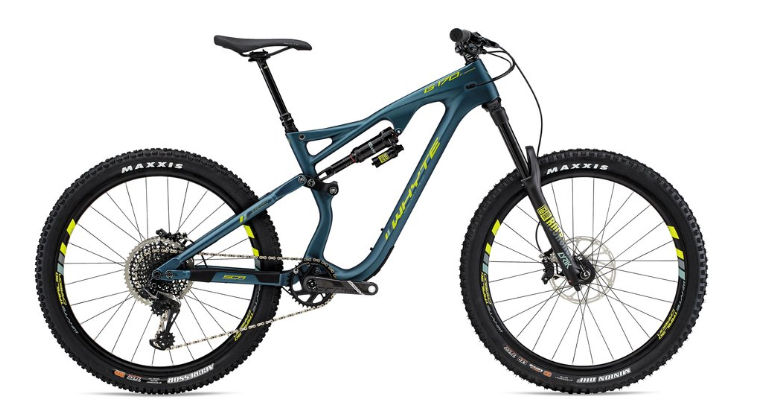

2019 Whyte G-170C Works geometry
Full frame geometry for the 2019 Whyte G-170C Works, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 632 | 452 | 75 | 64.5 | 110 | 583 | 406 | 840 | 435 | 1200 |
| M | 641 | 473 | 75 | 64.5 | 120 | 603 | 432 | 844 | 435 | 1221 |
| L | 646 | 496 | 75 | 64.5 | 130 | 628 | 457 | 869 | 435 | 1245 |
All measurements in millimetres unless marked (°) for angles.
