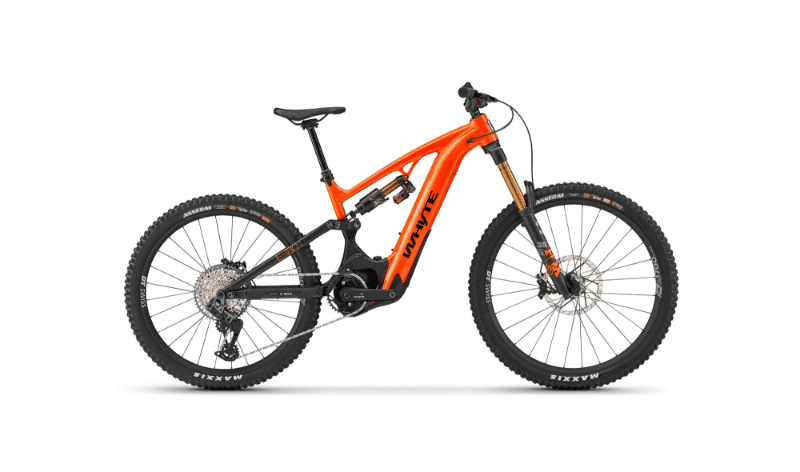

2026 Whyte E-180 geometry
Full frame geometry for the 2026 Whyte E-180, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M | 631.5 | 455 | 75.4 | 63.2 | 100 | 420 | 769 | 444 | 1255.5 | 44 |
| L | 645.1 | 483 | 75.2 | 63.2 | 115 | 445 | 770 | 444 | 1290.8 | 44 |
| XL | 658.6 | 510 | 75 | 63.2 | 130 | 470 | 772 | 444 | 1324.6 | 44 |
All measurements in millimetres unless marked (°) for angles.
