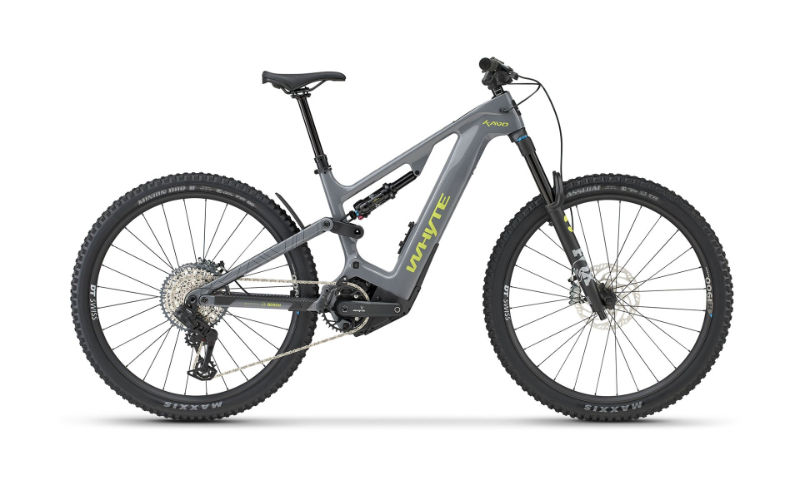

2026 Whyte Kado geometry
Full frame geometry for the 2026 Whyte Kado, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 623 | 435 | 77.9 | 65 | 104 | 395 | 765 | 450 | 1213.1 | 44 |
| M | 634.4 | 460 | 77.8 | 65 | 116 | 420 | 768 | 450 | 1243.2 | 44 |
| L | 646.2 | 485 | 77.7 | 65 | 129 | 445 | 771 | 450 | 1273.7 | 44 |
| XL | 659.8 | 510 | 77.5 | 65 | 144 | 470 | 774 | 450 | 1305 | 44 |
All measurements in millimetres unless marked (°) for angles.
