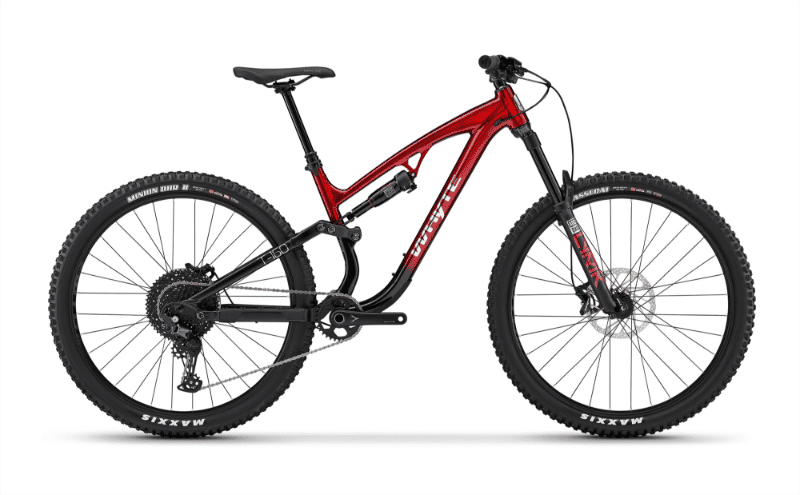

2026 Whyte T-160 geometry
Full frame geometry for the 2026 Whyte T-160, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 632 | 450 | 75.1 | 64.7 | 100 | 431.8 | 825 | 26 | 440 | 1222 | 44 |
| L | 645 | 478 | 74.8 | 64.7 | 125 | 457.2 | 828 | 26 | 440 | 1256 | 44 |
| XL | 659 | 505 | 74.6 | 64.7 | 140 | 482.6 | 839 | 26 | 440 | 1290 | 44 |
All measurements in millimetres unless marked (°) for angles.
