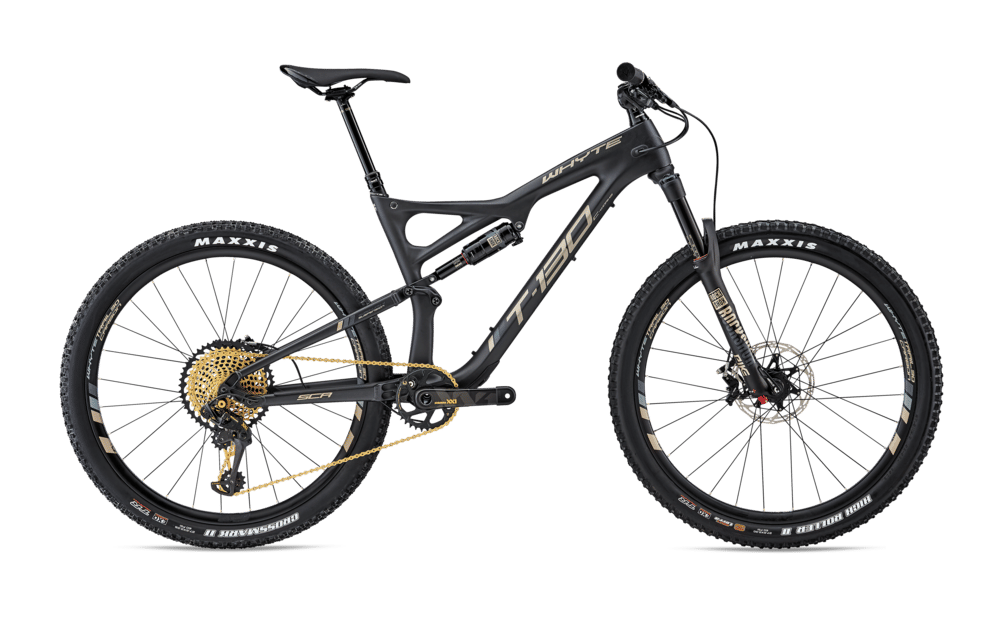

2018 Whyte T130 Carbon geometry
Full frame geometry for the 2018 Whyte T130 Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M | 589 | 449 | 73.5 | 67 | 115 | 611 | 432 | 766 | 420 | 1156 |
| L | 594 | 467 | 73.3 | 67 | 120 | 631 | 457 | 776 | 420 | 1176 |
| XL | 603 | 483 | 73.2 | 67 | 130 | 651 | 483 | 786 | 420 | 1196 |
All measurements in millimetres unless marked (°) for angles.
