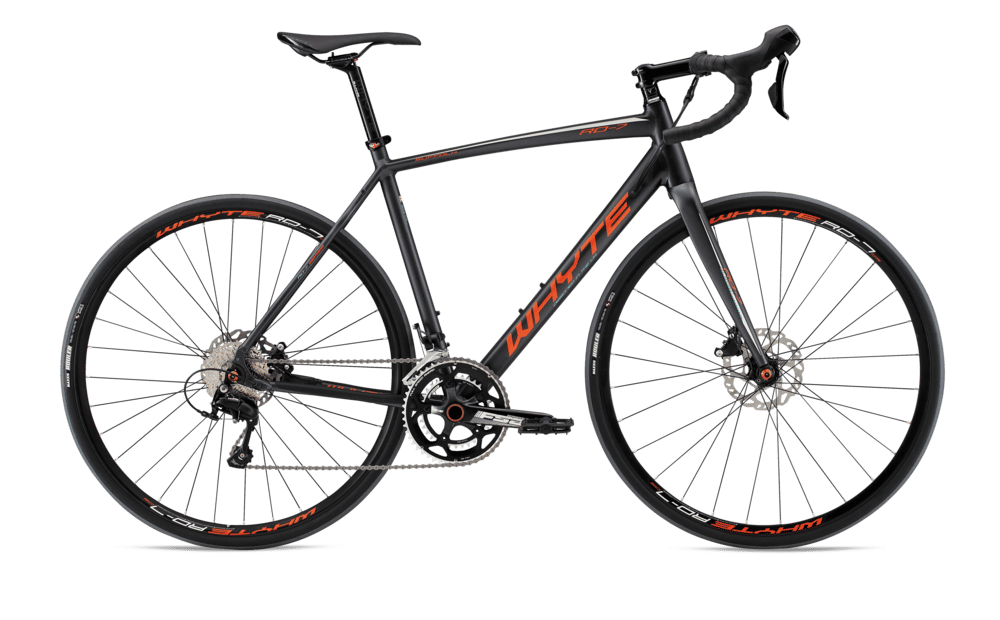

2018 Whyte Suffolk geometry
Full frame geometry for the 2018 Whyte Suffolk, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 52 | 567 | 377 | 74 | 72.5 | 145 | 540 | 520 | 782 | 425 | 998 |
| 54 | 583 | 382 | 73.5 | 73 | 160 | 555 | 540 | 798 | 425 | 1003 |
| 56 | 598 | 387 | 73 | 73 | 175 | 570 | 560 | 814 | 425 | 1013 |
| 58 | 612 | 398 | 73 | 73 | 190 | 585 | 580 | 830 | 425 | 1028 |
All measurements in millimetres unless marked (°) for angles.
