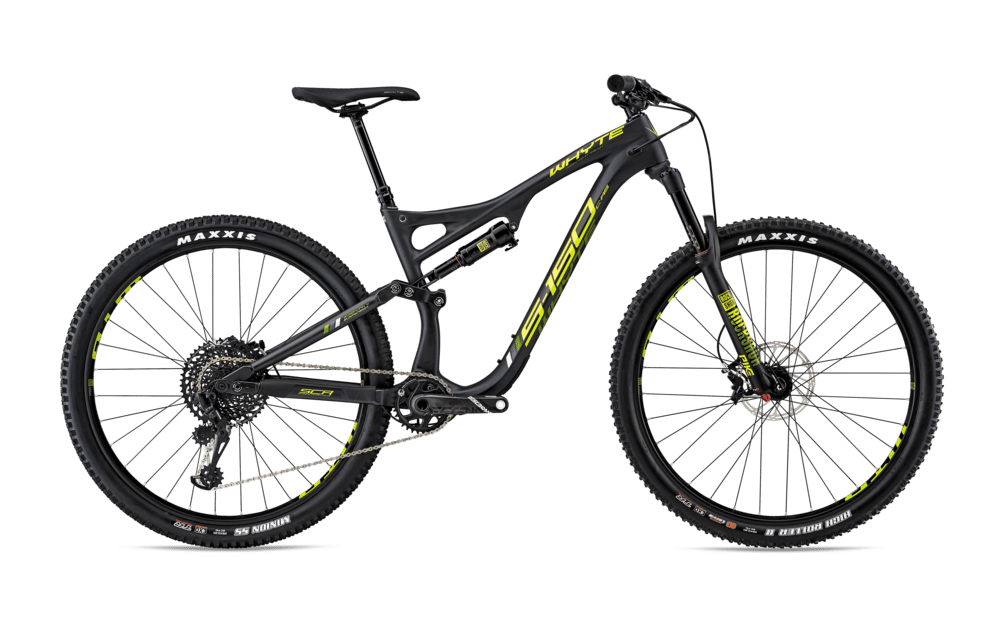

2018 Whyte S150 geometry
Full frame geometry for the 2018 Whyte S150, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M | 632 | 458 | 74.7 | 65.6 | 110 | 621 | 432 | 816 | 435 | 1212 |
| L | 641 | 474 | 74.5 | 65.6 | 120 | 640 | 457 | 816 | 435 | 1232 |
| XL | 650 | 490 | 74.3 | 65.6 | 130 | 660 | 483 | 816 | 435 | 1252 |
All measurements in millimetres unless marked (°) for angles.
