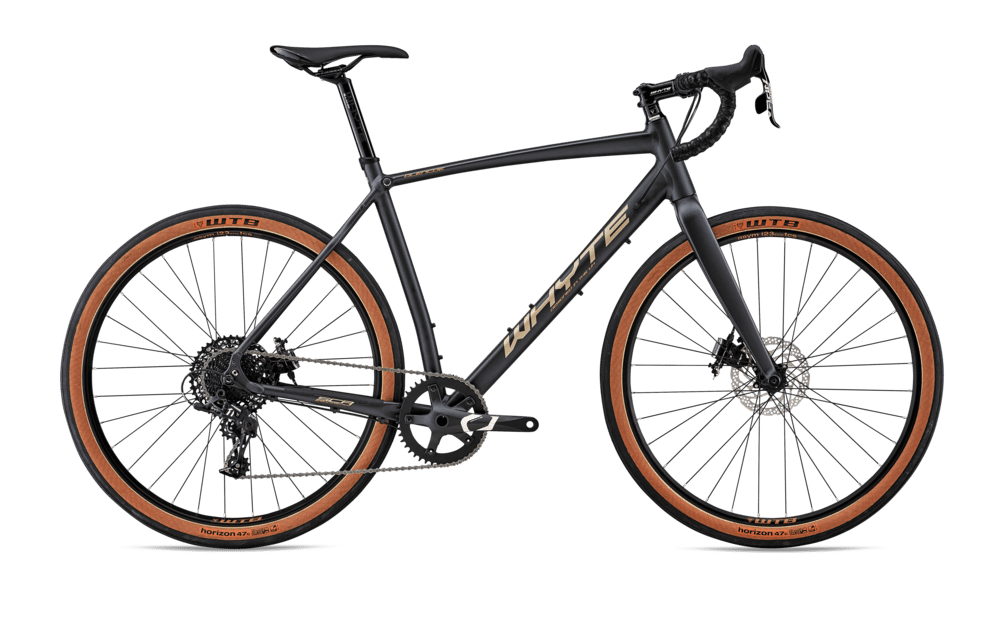

2018 Whyte Glencoe geometry
Full frame geometry for the 2018 Whyte Glencoe, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 563 | 396 | 74 | 70 | 130 | 557 | 500 | 776 | 425 | 1037 |
| 52 | 577 | 400 | 74 | 70 | 145 | 566 | 520 | 797 | 425 | 1047 |
| 54 | 591 | 425 | 74 | 70 | 160 | 595 | 540 | 841 | 425 | 1077 |
| 56 | 605 | 430 | 74 | 70 | 175 | 604 | 560 | 829 | 425 | 1087 |
| 58 | 620 | 445 | 74 | 70 | 190 | 623 | 580 | 850 | 425 | 1107 |
All measurements in millimetres unless marked (°) for angles.
