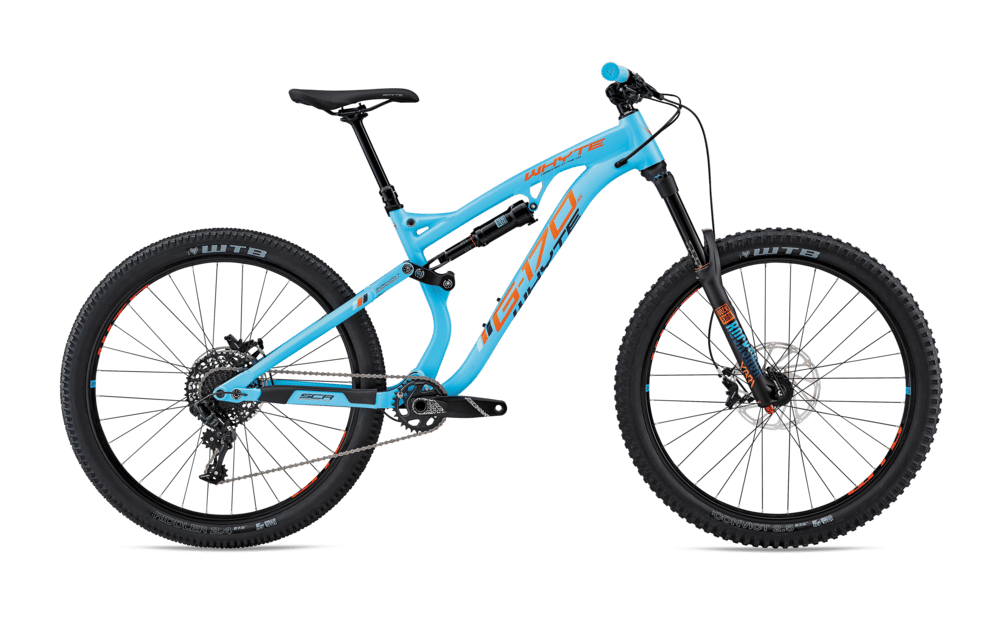

2018 Whyte G170S geometry
Full frame geometry for the 2018 Whyte G170S, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 619 | 442 | 75.8 | 65 | 110 | 583 | 406 | 840 | 430 | 1196 |
| M | 628 | 458 | 75.5 | 65 | 120 | 603 | 432 | 844 | 430 | 1216 |
| L | 637 | 479 | 75.2 | 65 | 130 | 628 | 457 | 848 | 430 | 1241 |
| XL | 642 | 502 | 74.9 | 65 | 135 | 652 | 483 | 848 | 430 | 1013 |
All measurements in millimetres unless marked (°) for angles.
