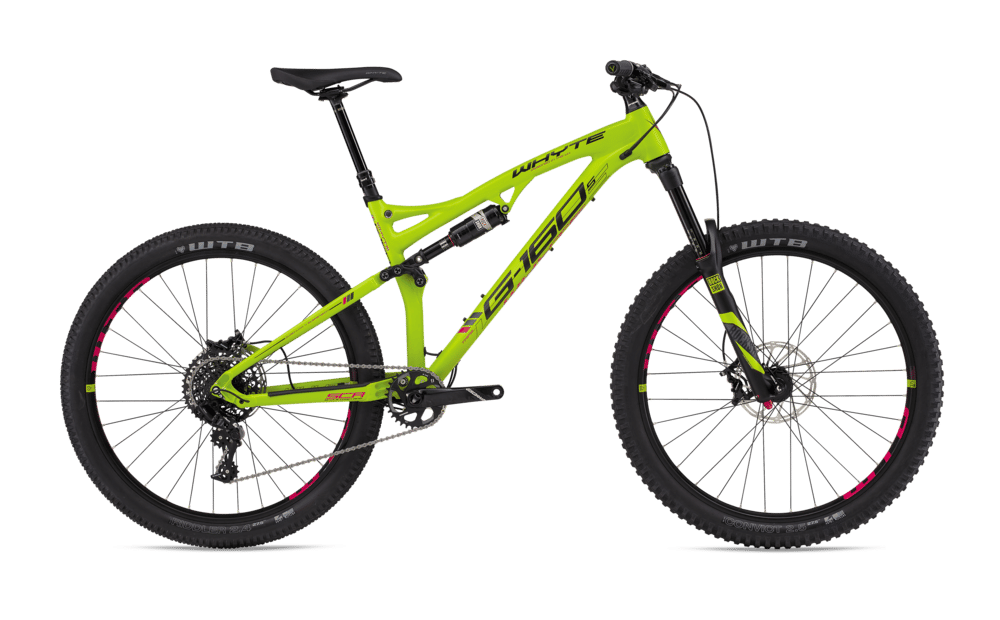

2018 Whyte G160 geometry
Full frame geometry for the 2018 Whyte G160, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 593 | 455 | 74.7 | 66 | 95 | 608 | 406 | 806 | 425 | 1182 |
| M | 607 | 479 | 74.5 | 66 | 110 | 637 | 432 | 814 | 425 | 1212 |
| L | 616 | 495 | 74.3 | 66 | 120 | 656 | 457 | 820 | 425 | 1232 |
All measurements in millimetres unless marked (°) for angles.
