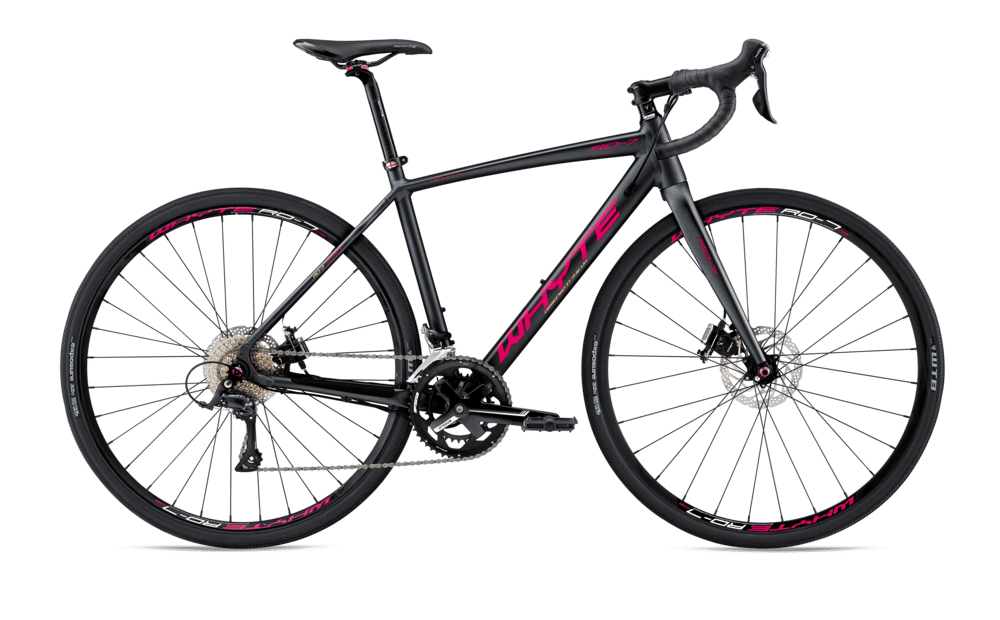

2018 Whyte Devon geometry
Full frame geometry for the 2018 Whyte Devon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 519 | 363 | 75 | 71.5 | 115 | 507 | 470 | 721 | 425 | 985 |
| 49 | 537 | 363 | 74.5 | 72 | 130 | 515 | 490 | 742 | 425 | 985 |
| 51 | 567 | 362 | 74 | 72.5 | 145 | 525 | 510 | 776 | 425 | 985 |
| 53 | 583 | 363 | 73.5 | 73 | 160 | 535 | 530 | 794 | 425 | 985 |
All measurements in millimetres unless marked (°) for angles.
