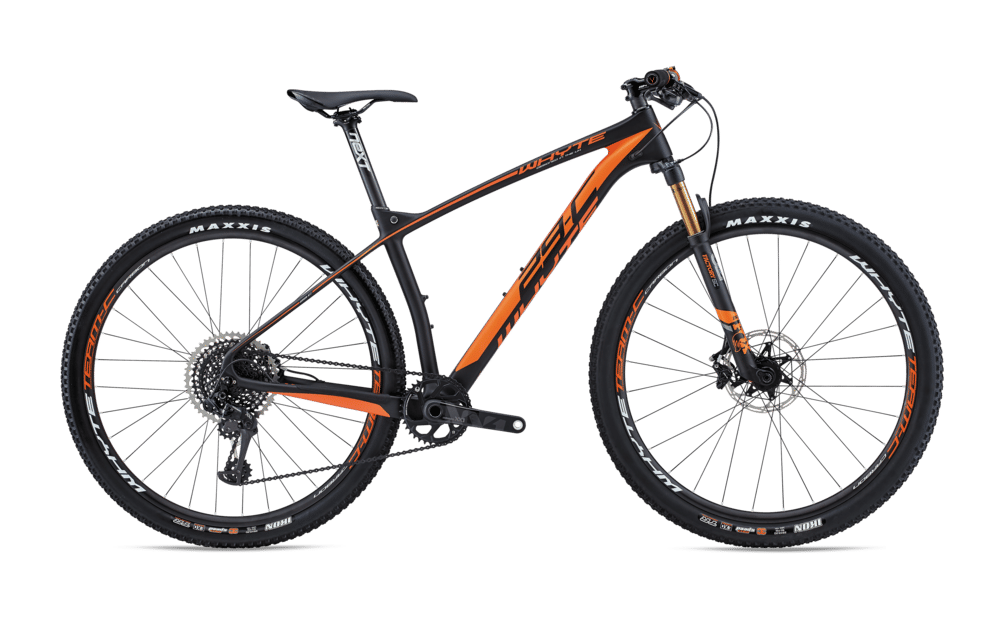

2018 Whyte C29 Series geometry
Full frame geometry for the 2018 Whyte C29 Series, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 615 | 425 | 72.8 | 69.3 | 100 | 612 | 406 | 789 | 438 | 1117 |
| M | 625 | 437 | 72.8 | 69.3 | 110 | 627 | 444 | 809 | 438 | 1128 |
| L | 634 | 448 | 72.8 | 69.3 | 120 | 641 | 496 | 844 | 438 | 1145 |
All measurements in millimetres unless marked (°) for angles.
