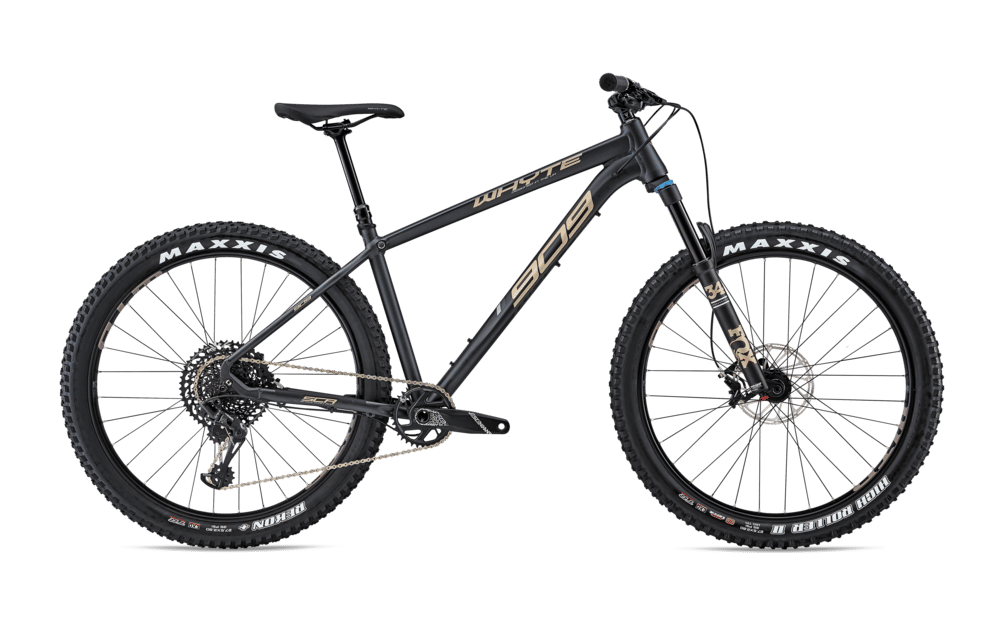

2018 Whyte 900 Series geometry
Full frame geometry for the 2018 Whyte 900 Series, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 623 | 429 | 73 | 65 | 120 | 620 | 408 | 788 | 430 | 1167 |
| M | 632 | 445 | 73 | 65 | 130 | 638 | 434 | 794 | 430 | 1187 |
| L | 641 | 461 | 73 | 65 | 140 | 657 | 459 | 820 | 430 | 1207 |
| XL | 650 | 476 | 73 | 65 | 150 | 675 | 485 | 826 | 430 | 1227 |
All measurements in millimetres unless marked (°) for angles.
