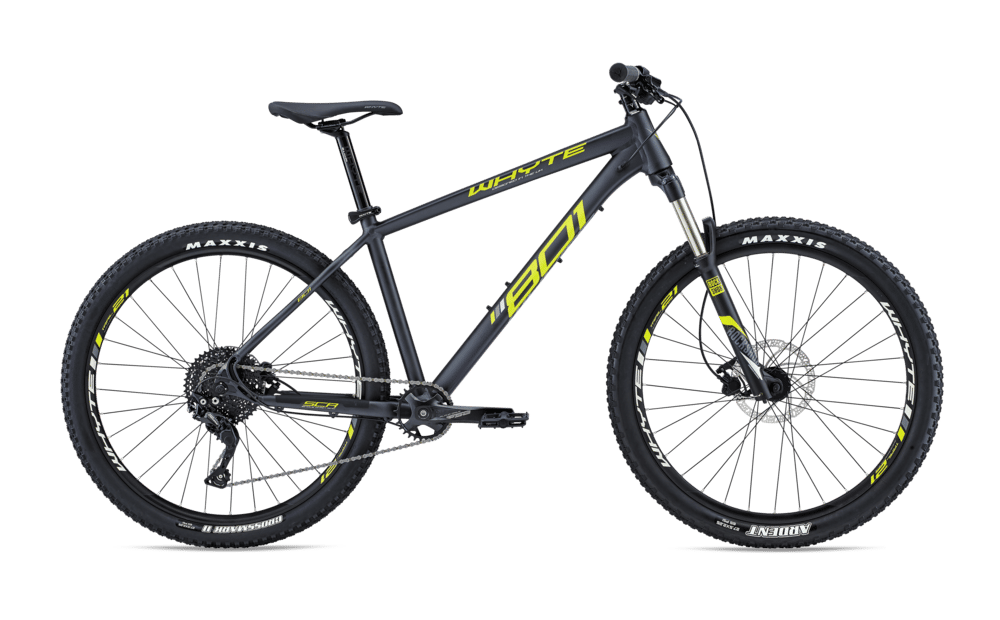

2018 Whyte 800 Series geometry
Full frame geometry for the 2018 Whyte 800 Series, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 610 | 429 | 74 | 66.5 | 115 | 604 | 406 | 789 | 425 | 1138 |
| M | 619 | 445 | 74 | 66.5 | 125 | 623 | 444 | 807 | 425 | 1158 |
| L | 628 | 461 | 74 | 66.5 | 135 | 641 | 483 | 832 | 425 | 1178 |
| XL | 637 | 477 | 74 | 66.5 | 145 | 660 | 533 | 861 | 425 | 1198 |
All measurements in millimetres unless marked (°) for angles.
