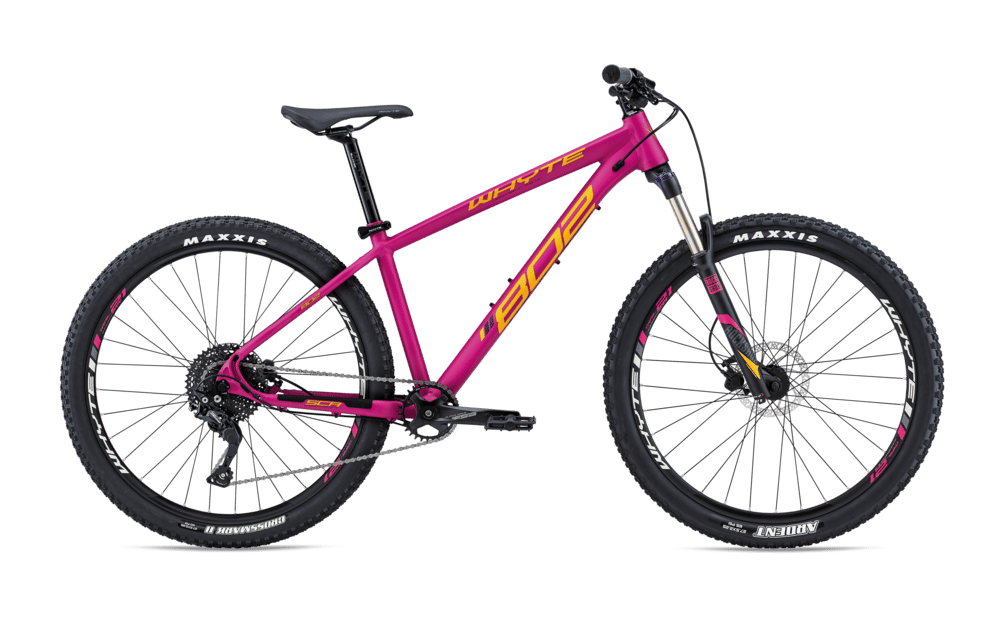

2018 Whyte 800 Series Compact geometry
Full frame geometry for the 2018 Whyte 800 Series Compact, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 602 | 407 | 74 | 66.5 | 107 | 580 | 381 | 786 | 425 | 1112 |
| S | 609 | 424 | 74 | 66.5 | 115 | 599 | 406 | 794 | 425 | 1132 |
| M | 619 | 440 | 74 | 66.5 | 125 | 618 | 444 | 814 | 425 | 1163 |
All measurements in millimetres unless marked (°) for angles.
